Standard-Compliant with VDSL,VDSL2 standards, Support fall back to ADSL/ADSL2+

 Bonging VDSL-Creates a superiorly faster speed for network via bonding two DSL lines

 Versatile Connectivity-VDSL/ADSL or Ethernet WAN for multiple Internet connection types
   Profile 17a-support profile 8a,8b,8c,8d,12a,12b,17a
   Ethernet Port–3FE port and 2 GE port for internet wired connection
11N WiFi speed-Wireless 802.11b/g/n AP integrated, wireless rate up to 300Mbps.

USB 2.0 ports– Support Storage Sharing (Samba or FTP), Media Server, Print Server and multi accounts
Product Number DCE 5205AV NRD
WiFi Technology Wireless 802.11b/ g / n AP integrated
WiFi Performance 300 Mbps
WiFi Range Large homes
WiFi Band  2.4 GHz
Number of Ethernet Ports Three(3) 10/100 Mbps Fast Ethernet ports and Two?2?Gigabit Ethernet port
Number of USB Ports One USB port
Key Features Modem/Router /Switch= 3-in-1 Device, enjoy one stop networking solution
DSL & Ethernet dual wan acess
Easy Installation Wizard
Integrated With TR-069 Client
Transparent Bridge working mode
Wi-Fi On/Off Switch allows users to simply turn their wireless radio on or off
802.1p QoS,4 Queues support
PPPOE,PPPOA,IPOE,IPOA,Bridge service type
DHCP server,relay and client
Parent Control allows to establish restricted access policies for children or staff
Seperated WiFi guest network
External two  antennas
1 USB Port for printer
On/off LED lights option
Security NAT for basic Firewall support
Packet Filtering Firewall Support
Three ways of access authentication to Modem (admin/ user/ support)
URL Filtering
IP Filtering
MAC filtering
Processor BCM63168
Memory 8 MB flash and 64 MB RAM
Physical Specifications Dimensions: 7.48*5.51*1.38 in(190*140*35 mm)
Weight: 0.88 lbs(400 g)

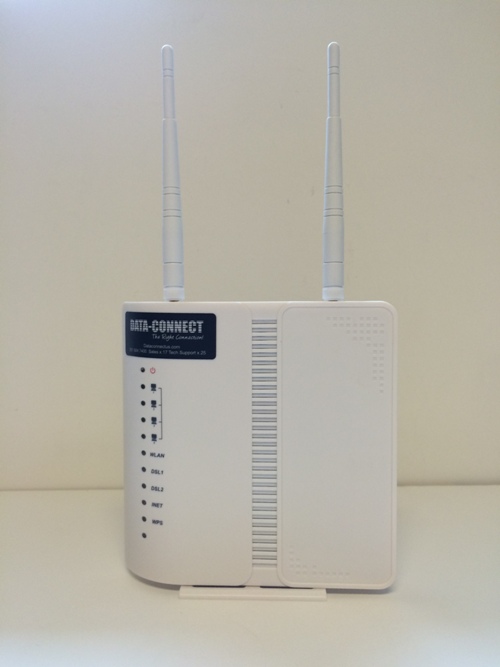

Product Diagram
