DATA CONNECT CDR-HSPA Series
HSPA/UMTS Routers

HSPA/UMTS Router
WAN Connectivity – HSPA/UMTS with EDGE/GPRS fallback, SMS
LAN Connectivity – Ethernet, RS232, USB, serial application port, discrete input, discrete output
GPS Receiver – Standard, Built In
IPsec Secure Tunneling – Optional
Warranty – 1 Year Limited Warranty

Data Connect’s CDR-HSPA Series has been designed to meet the demanding requirements of wireless machine-to-machine communications for high volume OEM and VAR implementations. The CDR-HSPA Series allows customers to quickly and economically integrate wireless IP and GPS capabilities into real-time M2M networks with a degree of reliability that could never be obtained using wireless modems.Data Connect’s CDR-HSPA Series wireless routers provide OEM and VAR customers with a cost effective private label product that incorporates the “must have” features found on Data Connect’s popular CDR-HSPA line. Standard features include Ethernet and serial interfaces, as well as discrete I/O and an SMS capability. Users will experience the familiar web based interface first introduced on the  models and enjoy the same levels of network performance and reliability that Data Connect’s always available connection management logic has provided for many years.

Unlike the majority of the Ethernet capable wireless modems being deployed Data Connect’s CDR-HSPA Series is designed to manage an entire LAN segment, simultaneously routing traffic between a combination of serial and Ethernet devices and one or more head-end servers.

Features

  • Always available IP – all networks
  • Ethernet, Serial, and USB connectivity
  • Built-in GPS (CDMA/HSPA models)
  • Automation and navigation applications
  • SMS out-of-band management
  • Open XML interface
  • No charge development environment

Benefits

  • High reliability cellular IP
  • Prebuilt applications – time-to-market
  • Wireless application platform
  • Scalable PLC capabilities
  • Open development environment
  • Open interfaces
  • Private label and package options

Description

The first wireless device to step outside the “Wireless Modem” paradigm and provide true IT quality routing capabilities for wide area networking over cellular and PCS networks. Today Data Connect wireless routers are providing reliable data communications on CDMA, GSM and HPA/UMTS networks around the world.

Data Connect has a large selection of wireless routers for every network, all built on the Linux operating system and complete with firewall, GRE tunneling, and SMS messaging capabilities. A rich set of options like an industrial automation (PLC) application, IPSec, AVL/LBS navigation, and an XML developing interface round out the package. The Data Connect wireless routers meet your local communications need with Ethernet, RS232, RS485, and USB connectivity, and a full complement of industrial I/O modules that can be added on.

Perhaps your application needs a home. Are you looking for a wireless application platform for your product that has been tested and approved on all major networks? Do you need a platform with no-charge development kit and plenty of APIs to get you going quickly? The Data Connect wireless routers are the only wireless application platforms available providing an open source industrial quality development platform complete with a wireless router implementation that is approved from operation on all major networks. Reduce cost, complexity, and component count. The savings are yours when your wireless box doubles as your application platform.

Specification

Wireless WAN

  • HSPA 7.2/UMTS/EGDE/GPRS
  • HSPA/UMTS – 850, 1900, 2100 MHz
  • GPRS/EDGE – 850, 900, 1800, 1900 MHz
  • GPS-gpsOne
  • Two Way SMS capable

LAN
Physical
Ethernet – RJ45
Auto, Full or Half Duplex
10 or 100 base T — Auto polarity sensing
Serial – RS232 (DB9)
Serial – RS485 (terminal block)
USB Host – Type A (500 ma)

Discrete I/O
Contact Closure (Input) Relay Driver (Output) I/O Expansion Available

Platform
OS – Linux 2.6
Processor – ARM9 (Atmel)
Memory (RAM) – 65MB
Release Distribution/Development Kit – No charge

Power and Environment
Operating and Storage Temperature Range
-30°C to +70°C – Humidity 90% non-condensing

Input Power
9-24VDC

Power Consumption @ 12VDC
Radio connected to serving network – 190ma (typical)
Ethernet not connected – variable due to network signal strength

Dimensions
5.25”L x 5.3”W x 1.2”H Weight: 14oz without wall power adapter

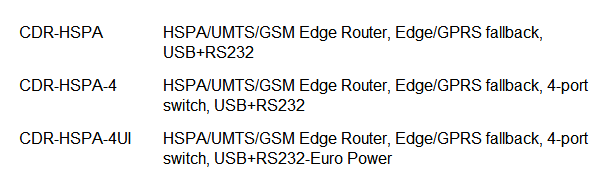

Ordering Information
