Data Connect
2178 High Power Wireless Antennas



The Data Connect High Power Wireless 5GHz 18dBi Flat Antenna operates unidirectional outdoor at 5100-5900MHz with Beam-width Degree of 10 degrees horizontal and 10 degrees vertical.

The Data Connect 2178 High Power Wireless 5GHz 10dBi Omni-directional- Antenna for use outdoor with a 360 degree Horizontal Spread & a 6 degree Vertical Spread.

The Data Connect 2178 High Power Wireless 5GHz 16.5dBi Sector Antenna for use outdoor with a 120 degree Horizontal Spread & a 10 degree Vertical Spread.

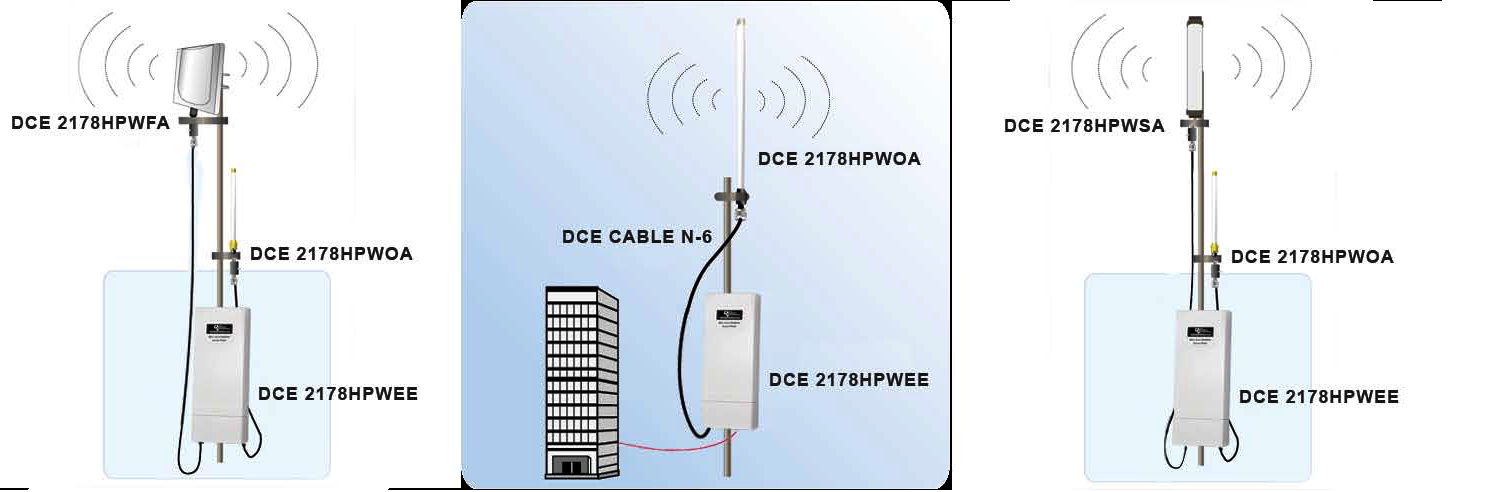

Application

2178HPWANTapp



Features

DCE 2178HPWFA (FLAT)



  • 10 degree Horizontal Spread & 10 degree Vertical Spread
  • Connector: N-Female
  • Operating environment: outdoor



DCE 2178HPWOA (OMNI)



  • 360 degree Horizontal Spread & 6 degree Vertical Spread
  • Connector: N-Female



DCE 2178HPWSA (SECTOR)



  • Operating environment: outdoor
  • 120 degree Horizontal Spread & 10 degree Vertical Spread
  • Connector: N-Female
  • Operating environment: outdoor

Specification



Model DCE 2178HPWFA (FLAT)

Product

Frequency 5100-5900MHz

Antenna Type unidirectional Flat panel

Gain (dBi) 18

SWR <= 2.0

Beam width Degree Hortz. 10   Vert. 10

Mounting Type Pole or wall Mount

Operating Temperature -40 ~ 70°C



Model DCE 2178HPWOA (OMNI)

Product

Frequency 5500-5825MHz

Antenna Type Omni-directional

Gain (dBi) 10

SWR <=2.0

Beamwidth Degree Hortz. 360 Vert. 6

Mounting Type Pole or wall Mount

Operating Temperature -40 ~ 70°C

Model DCE 2178HPWSA (SECTOR)

Product

Frequency 5150-5875MHz

Antenna Type Uni-directional, Sector

Gain (dBi) 16.5

SWR <=2.0

Beamwidth Degree Hortz 120 Vert. 10

Mounting Type Pole or Wall Mount

Operating Temperature -40 ~ 70°C

Ordering Information

DCE 2178HPWFA                     Data Connect 2178 High Power Wireless Flat Antenna
DCE 2178HPWOA                     Data Connect 2178 High Power Wireless Omni-directional Antenna
DCE 2178HPWSA                     Data Connect 2178 High Power Wireless Sector Antenna
