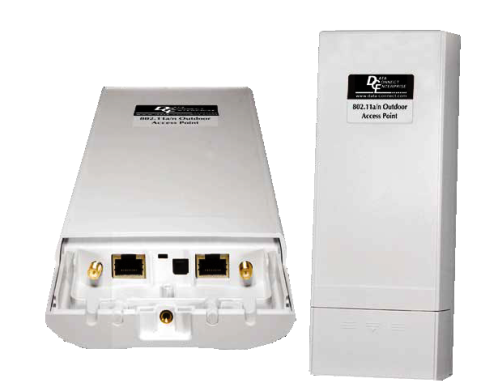

2178HP-WEE High Power Wireless Ethernet Extender
The Data Connect 2178 High Power Wireless Ethernet Extender provides higher transmitting power that translates to better performance and less interference with your wireless network when setting up wireless Ethernet extension. The Data Connect HPWEE is compatible with IEEE 802.11a/n, and the data rate is up to 300Mbps with the 802.11n mode. The Data Connect HPWEE not only has built-in 16dBi dual-polarity Antenna plus two External Antenna Connectors to allow stronger antenna upgrades. Therefore, the Data Connect HPWEE is quite suitable for widely open space wireless applications.
The Data Connect 2178HP-WEE Supports multiple operation modes: AP, AP Client, and WDS to conveniently configure versatile solutions in a wide range of wireless scenarios. It also supports WISP mode so that CPE users could easily connect to internet via a WISP provider to connect to a wired network.
In aspect of security, besides 64/128/152 bits WEP encryption, the Data Connect 2178HPWEE integrates WPA / WAP2, WPA-PSK / WPA2-PSK and 802.1x authority, to secure and protect your wireless Ethernet extender. Furthermore, with user-friendly Web and SNMP based management interface, the Data Connect 2178HP-WEE is easily managed and can be configured remotely.
The Data Connect 2178HP-WEE is perfectly suitable to be installed in outdoor environments and exposed locations. With its IP-55 casing protection, the Data Connect 2178HP-WEE can perform normally under rigorous weather conditions including heavy rain and wind. With our unique Power over Ethernet (PoE) design, the Data Connect 2178HPWEE can be easily installed in the areas where power outlets are not available. The best way of using the Data Connect 2178HP-WEE, is to build outdoor wireless Ethernet extension between buildings on campuses, business parks, rural areas and across highway for example.
Features
- IEEE 802.11a/n standard compliant
- 5GHz wireless networks deliver widely and better connections with less interference
- Multiple Antenna choices: Built-in 16dBi dual-polarity Antenna, and two External Antenna Connectors (Reverse SMA connector)
- Adopts 2T2R MIMO Technology for higher performance up to 300Mbps with 802.11n mode
- IP-55 case protection against rigorous weather condition
- Wide range of temperature tolerance for low or high temperature environment
- High Transmit Output Power up to 400mW with multiple adjustable transmit power control
- Power over Ethernet design (with proprietary injector)
- Multiple Wireless Access Modes: AP, Client CPE (WISP), WDS AP+WDS
- Supports 64/128/152-bit WEP and 802.1x, WPA, WPA2, WPA&WPA2, WPA-PSK, WPA2-PSK, and WPA-PSK&WPA2-PSK
- Firewall supports IP/Port Filtering
- User-friendly Web and SNMP based management interface

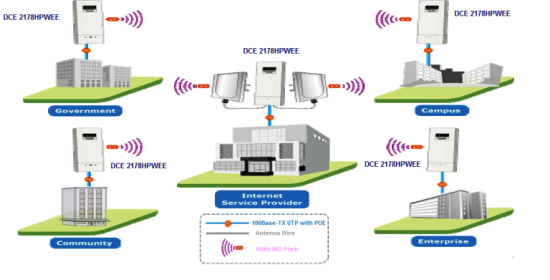

Application
Higher coverage & long distance between LAN connections The Data Connect 2178HP-WEE is a cost-effective outdoor wireless Ethernet extension solution for open space applications. It is best applied in outdoor wireless Ethernet extension connections between buildings.
With multiple antenna choice and adjustable output power controller, the Data Connect 2178HP-WEE provides higher coverage and long distance wireless Ethernet extension also allows CPE users to easily install and adjust the suitable value in appropriate locations. The WISP mode supported also enables CPE users to connect to internet via local WISP provider.
*** We suggest matching the same model in outdoor wireless Ethernet extension application for getting best performance
Specifications
Standard Support
IEEE 802.11a/n
IEEE 802.3u
Interface
Wireless IEEE 802.11a/n
LAN: 2 x10/100Base-TX, Auto-MDI/MDI-X
Modulation
OFDM with BPSK, QPSK, 16-QAM
Antenna
Internal (default): 16dBi dual-polarity
*Vertical Port HPBW
(YZ Plane /H-Plane): 36°
(XZ Plane /E-Plane): 15°
*Horizontal Port HPBW
(YZ Plane / E-Plane): 38°
(XZ Plane / H-Pane): 17°
External: RP-SMA Connector x2
*internal & external antenna switchable by Software
Receiver Sensitivity
IEEE 802.11a:
-89 dBm @ 6Mbps
-88 dBm @ 9Mbps
-87 dBm @ 12Mbps
-86 dBm @ 18Mbps
-83 dBm @ 24Mbps
-79 dBm @ 36Mbps
-75 dBm @ 48Mbps
-73 dBm @ 54Mbps
IEEE 802.11n:
HT20 MCS0~MCS7 ≤ -89dBm
HT40 MCS0~MCS7 ≤ -85dBm
HT20 MCS8~MCS15 ≤ -83dBm
HT40 MCS8~MCS15 ≤ -80dBm
Max. Output Power
802.11a: 24± 2dBm
802.11n: 23± 2dBm (HT20/40)
5 levels adjustable (Full, 50%, 25%, 12.5%, Min)
Data Rate
802.11a: 54/48/36/24/18/12/9/6Mbps
802.11n: HT20/40 MCS0~15 (6.5Mbps to 300Mbps)
Frequency Range
FCC: 5725~5850MHz
CE: 5470~5725MHz (DFS band)
Wireless Security
64/128/152-bits WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, & 802.1X
Wireless Access Mode
AP, Client, Client CPE (WISP), WDS, & AP+WDS
Environmental Protection Rating
IP-55
Dimensions (W x D x H)
110.98 x 255.6 x 47.65mm
Power Adapter
15V DC, 0.8A (passive POE)
Operating Environment
Temperature: -20 ~ 70°C
Humidity: 10~95% non-condensing
Ordering Information
DCE/2178HPWEE-2PK Data Connect 2178 High Power Wireless Ethernet Extender 2-pack DCE/2178HPWEE Data Connect 2178 High Power Wireless Ethernet Extender DCE/2178HPWFA Data Connect 2178 High Power Wireless Flat Antenna
DCE/2178HPWOA Data Connect 2178 High Power Wireless Omni-Directional Antenna DCE/2178HPWSA Data Connect 2178 High Power Wireless Sector Antenna
