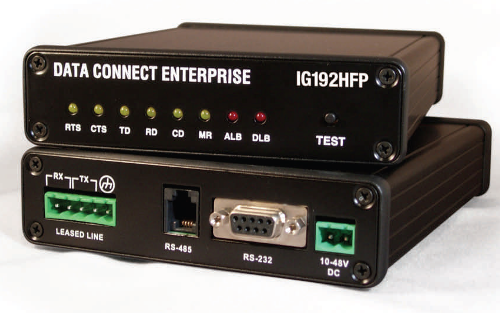

IG192HFP Serial Data Extender

The IG192HFP industrial grade 19.2kbps hyper fast poll modem is designed to operate over 4-wire full duplex or 2-wire half duplex unconditional leased line or private metallic circuits. For optimum performance, the modem employs QAM modulation and Viterbi decoding scheme along with its adaptive equalizer to communicate over variety of private transmission lines at distance up to 16.1 miles. The IG192HFP supports DTE/RTUs with and EIA RS-232 and RS-485 serial port at speeds of 1900, 9600, 4800, 2400 and 1200bps. With its Auto-RTS mode, the modem can support DTE/RTUs with 3-wire serial interface (TD, RD, and SG) multi-point polling applications.

The triple mode capability allows the IG192HFP industrial grade 19.2kbps hyper fast poll modem to communicate with older generating DSP9612FP at up to 9600kbps the Bell 202T and V.23 FSK modems at up to 1200bps.

The IG192HFP industrial grade 19.2kbps hyper fast poll modem is designed to operate over a wide range of AC or DC power supply voltages and temperatures. With proven reliability and ease of installation, the IG192HFP is deal for point-to-multipoint polling network, where fast training time and low network latency are critical for system performance.

Specifications

Triple Mode:
Hyper Fast Poll mode at 19200bps. 17.4ms RTS-CTS delay QAM mode at 9600/4800/2400bps. 23 ms RTS-CTS delay FSK mode for both Bell 202T (0-1800bps) and V23 (0-1200bps)

DTE/RTU Interface:
RS-232 interface with full control signals support (DB-9F) RS-485/RS-422 support, 4-wire F.D, or 2-wire H.D. Auto RTS and forced RTS option to support 3-wire interface.

Private Line Interface:
Telco 2 or 4-wire conditioned or unconditioned lines Private metallic 2 or 4 circuits
Private Line at distance up to 16.1 miles
Cable equalizers for long distance over standard cables

Mechanical:
Enclosure Dimensions: 5.0” (W) x 6.75” (L) x 1.3” (H)
127mm (W) x 172mm (L) x 33mm (H)

Diagnostics:
Local or remote Analog + digital loopback eight (8) front panel LEDs for status monitoring
AC and DC Power Support:
Standalone: 10-48VDC, 85-400VDC, 100-240VAC Rack Mount
Module: Plug-in RM16M modem rack

Environmental:
Operating temperature: -40 to 85°C
Storage temperature: -40 to 100°C
Humidity: up to 95%, non-condensing

Optional Mounting Kits:
Wall-mount or panel-mount kit DIN rail mounting kit

Power + Current Consumption:
125mA @ 12VDC
28.0mA @ 48VDC

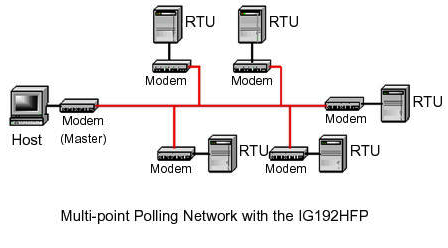

Applications

Ordering Information

DCE/IG192HFP                                     Standalone (100-240VAC)
DCE/IG192HFP-LV                                Standalone (10-48VDC)
DCE/IG192HFP-HV                                Standalone (100-240VAC, 85-400VDC)
DCE/IG192HFP-RM                               RM16M Rack-mount Module
DCE/IG192HFP-WMB                            Wall-Mount/Panel-Mount Kit
