The Data Connect

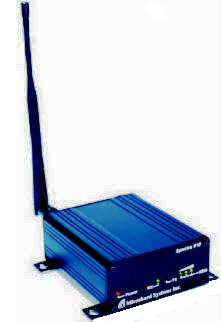

SMW910A Serial Data Extender

As industry leaders for extremely robust and reliable license free data transfer, the Data Connect SWM910A provides up to 115kbps serial communications over distances up to62 mile (100km). Flexible configuration options allow for various network topologies. Data Connect proprietary radio technology excels in the most demanding RF and physical environments. The Data Connect SWM910A is easily configured through a convenient AT Command Serial Interface. Users have ability to deploy a wide range of network styles including repeaters and multipoint. The master she can diagnose the performance and modify the operating parameters of any remote slave unit. The following are applications for the SWM910A SCADA Telemetry Vehicle Detail Tracking Utilities / Metering Display Signs Traffic Control Many More The SWM910A provides a very high Interference and noise rejection allowing reliable communication in high power cellular and paging environments. The repeaters units can also act as slave with no restriction on the number of repeaters on the system. Internal CRC and user selectable forward error correction ensures reliable transmission.

Features

  • Up to 115kbps continuous throughout
  • Extremely Robust Long Range Frequency – Hopping Data Radio Transparent Communication
  • Low Latency adding Little Overhead
  • Supports Point-to-Point, Point-to-Multipoint, Repeater, TDMA
  • Supports TDMA mode through Units configured as a Repeater
  • Adjustable Transmit Power (100mW 1W)

Specifications

Frequency:
902-928MHz

Spread Methods:
Frequency Hopping

Output Power:
1W User Configurable

Sensitivity:
-108dBm

Data Rate:
1200 to 115.2kbps Uncompressed

Range:
62+ miles (100+km) dependent on link rate and line of sight

Rejection:
70dB Out of Band, 60dB in Band 50dB Adjacent Channel

Operating Modes:
Point-Point, Point-to-Multipoint, Store & Repeater, TDMA Multi-master

Hopping Pattern:
64 User Selectable

Diagnostic:
Remote Control, Remote Statics, Remote Diagnostics

Error Detection:
32bis of CRC with Optional REC

Data Interface:
Asynchronous RS232 Optional RS422/RS485

RS232 Signals:
GRD, TXD, RXD, CTS, RTS, DTR, DRS, DCD

Input Voltage:
10-30VDC

Power Consumption:
450mA Max at 12V & 1W TX Power
250mA Max at 12V & 1W TX Power

LED Indicators:
Power TX, RX, RSSI

Antenna Connector:
RP-TNC Female Bulkhead

Data Connector:
Locking Screw Connector

Environmental

Temperature:
-40°C to +85°C

Humidity:
5-95% Non-Condensing

Weight:
420g

Dimensions:
111mm L x 95.3mm W x 44.5mm H

Enclosure:
Extruded Aluminum

Mount:
Panel Mount

Approvals:
FCC Part 15.247 IC RSS210

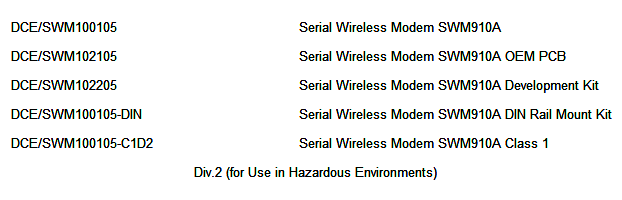

Ordering Information
