DATA-CONNECT SE2130 10/100Mbps Serial Ethernet Bridge
Ethernet network connections over 2Mbps lease lines

SE2130 006 200x267



Replacement for RAD TinyBridge

The Data-Connect SE2130 Serial Ethernet Bridge is a high performance remote, self-learning, Serial Ethernet bridge. Its compact size and low cost makes it ideal for cost-sensitive bridging applications or as a LAN extender or segmenter over bit stream type infrastructures. The built-in n x 64(56) Kbps timing clock generator makes it easy to connect to other n x 64(56) Kbps related data equipment. Several options of data interfaces, including V.35, RS-530, RS-449, X.21 and RS-232, make this unit’s connection between 10Base-T and 100Base-TX LAN and various dataport interfaces convenient.

Features

  • Automatic LAN table learning and aging
  • Auto-MDI/MDIX detects and corrects crossed cable
  • Built-in n x 64K / n 56K timing clock generator for Sync WAN link
  • IEEE 802.3x flow control
  • High performance bridge for 10Base-T or 100Base -TX Ethernet extension
  • Selectable data port interfaces: v.35, RS530, RS-449, X.21, and RS-232. (with cable adapters)
  • Transparent half / Full duplex support on WAN / LAN interface

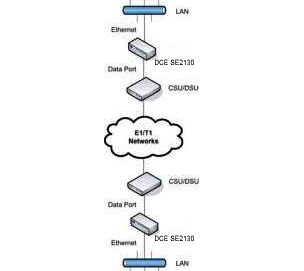

Application

se2130 appSpecifications

Standard
IEE 802.3/10Base-T, IEE 802.3u/100Base-TX

Connector
RJ-45

Bridge

LAN Table:                              256 MAC address with 5 minute automatic aging
Filtering and Forwarding:    15,000 frames/sec
Buffer:                                      256 frames
Delay:                                      1 frame

LED’s
LAN/WAN Link and activity status

Power
DC:    9VDC

Environment

Temperature:    0 to 50°C (Operating); -20 to 65°C (Storage)
Humidity:            0 to 90% non-condensing

Power Consumption
<5W

 Dimensions(WxDxH)
7.9mm x 13.5mm x 2.5mm

Weight
150g

Compliance
FCC, CE

MTBF
TBA

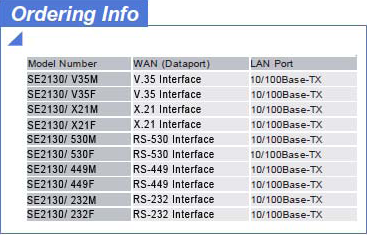

se2130 ordering info
