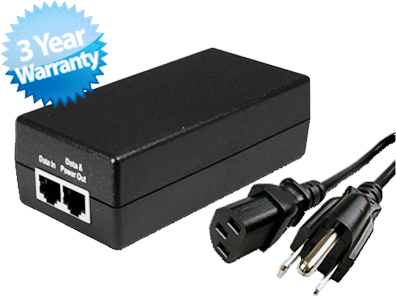

Data Connect Simple PoE Injector
DCE/48V-POEI
IEEE 802.3af  Simple Power over Ethernet PoE Injector

The Data Connect 48V-POEI is an 802.3af Power over Ethernet POE Injector works with any and all access points that are also 802.3 POE compliant. The Data Connect 48V-POEI is self contained with both a Power over Ethernet POE Injector adapter and a power supply all in one; this makes it much easier to deal with when keeping a clean cable room. The 48V-POEI also has 100/240VAC support and supplies 48VDC to all units.

The Data Connect 48V-POEI Power of Ethernet POE Injector adapter puts Power over pairs 4, 5, 7 and 8. This unit can also be used with Cisco POE equipment using an altered Pin Out on the RJ45 cable. The 48V-POEI also provides Auto-Recover, Over-Voltage and Short Circuit protection.

Features

  • 19 watts
  • Cispr 22”B”, Vcci”B”, Fcc”B”, Compliance
  • Light Weight: 145g
  • Efficiency over 75%
  • Over-Voltage Protection Installation
  • Short-circuit Protective Installation
  • Protection Type: Auto-Recover
  • 802.3af Standard
  • Operating Temperature 0°C~40°C



Specifications

Product:
IEEE 802.3af Power over Ethernet POE Injector

Model:
48V-POEI

Output Voltage:
48 V

Output Rating:
0.4 A

Input Voltage:
AC 90 ~ 264V

Input Frequency:
47 ~ 63 Hz

Input Currency:
0.5 A Maximum

Inrush Current:
40 A Maximum

Line Regulation:
2% Maximum

Load Regulation:
± 5%

Ripple Noise:
1% Typical

Efficiency:
83% Typical

Temperature Coefficient:
0.05% / °C

Over-Voltage Coefficient:
96V Maximum

Operating Temperature:
0~40°C

Storage Temperature:
-20~85°C

Safety Description:
I / P

Ordering Information

DCE V48-POEI               IEEE 802.3af Power over Ethernet POE Injector
