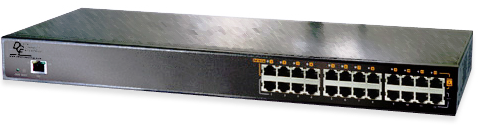

Data Connect 48V POEI-12PH
Power over Ethernet 12 Port Hub

Quick and Easy POE Network Deployment
The Data Connect DCE 48V POEI-12PH is 12-Port IEEE 802.3af Power over Ethernet Web Management interjector Hub complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With 12 10/100 Base-TX Fast Ethernet ports, DCE 48V POEI-12PH support full 48V DC power for any remote IEEE 802.3af powered device (PD) like Wireless LAN Access Point, IP phone, and IP camera. Supporting POE power budget of 190 watts, DCE 48V POEI-12PH provides sufficient 15.4 watts POE power to 12 remote PD devices.

Easy Cabling installation
The DCE 48V POEI-12PH is installed between a regular Ethernet Switch and the powered devices, injecting power without affecting the data transmission. They offer a cost effective and quick solution upgrade network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet Switch. There are 24 RJ45 STP ports on the front panel of POE Injector Hub, in which the 12 ports on the lower stack function as “Data Input” and the other 12 ports on the upper stack function as “POE (Data and Power) output”. Each of the “POE output” port on the upper stack operates as a power injector which transmits DC Voltage to the CAT 5 cable to transfer data and power simultaneously between the Injector and the Splitter.

Friendly / Simple Web Management Interface
To efficiently manage the powered devices, DCE 48V POEI-12PH provide Web management interface in which administrators can use the functions including port Enable / Disable, port priority, system configuration, and Username / Password changing and with smart features for powered device. The POE injectors Hub can also auto detect the power status of each port and show messages on its Web management interface. These features also provide a cost-effective way to manage the device via from Internet whenever you are at work or at home.

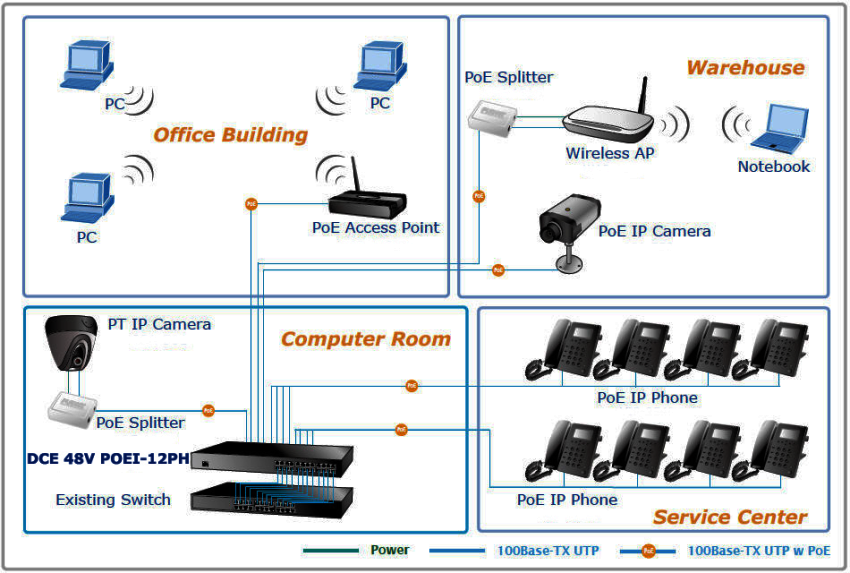

Application

POE Injector Hub
For the places hard to find the power outlet, DCE 48V POEI-12PH provides the easiest way to power your Ethernet devices on the ceiling and the Wireless Access Point installed on the top of the building.

To control the power system of your network devices, DCE 48V POEI-12PH can directly co-work with POE IP phone to build VoIP telephony network in the office. Furthermore, the DCE 48V POEI-12PH can be directly connected to any third party 802.3af compliant devices and POE Switches installed 100 meters away.



Features

Interface

  • 24-Port RJ45 STP
  • 12-Port “Data input”
  • 12-Port “POE (Data + Power) output”
  • 1 10/100Base-TX Management Port with Auto MDI / MDI-X features

POE

  • Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
  • Up to 12 IEEE 802.3af devices powered
  • Support POE power up to 15.4 watts for each POE ports
  • Auto detect powered device (PD)
  • Circuit protection prevent power interference between ports
  • Remote power feeding up to 100m

POE Management

  • Total POE power budget control
  • Pert port POE function Enable / Disable
  • POE Port power feeding priority
  • Per POE Port power limit
  • PD classification detection

Management

  • Web interface for remote management
  • Firmware upgrade through Web interface
  • Smart discover utility automatically find DCE device on the network
  • SNMP trap for alarm notifications of events

Hardware

  • 19-inch rack mountable; 1U height
  • Reset button for reset to fault setting and system reboot
  • LED indicators for POE ready and POE activity

Standard Compliance

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3af Power over Ethernet
  • FCC part 15 Class A, CE





Specifications

Model:
DCE 48V POEI-12PH

Hardware Specifications

Interface:
“Data” Input Ports: 12 x RJ45 STP
“POE (Data + Power)” Output Ports: 12 x RJ45 STP
Management Port: 1 x RJ45; 10/100Base-TX, auto negotiation, auto MDI / MDIX

LED:
System: Power x 1 (Green)
Management Port x2: 10/100 (Green/Orange)
Per POE Port: POE in Use x 1 (Green)

Network Cable:
10Base-T: 2-pair UTP Cat. 3, 4, 5 up to 100m (328ft)
100Base-TX: 2-pair UTP Cat. 3. 4, 5 up to 100m (328ft)
EIA/TIA- 568 100 ohm STP (100m)

Dimensions: (W x D x H)
440 x 200 x 44mm (1U height)

Weight:
2.7kg

Power Requirement:
100-240VDC AC, 50/60 Hz

Power Consumptions:
200 watts max.

Operating Temperature:
0 ~ 50°C

Storage Temperature:
-40 ~ 70°C

Humidity:
5 ~ 95% (Non-Condensing)

Cooling:
Fan x1

Power over Ethernet

POE Standard:
IEEE 802.3af Power over Ethernet / Mid-Span PSE

POE Power Supply Type:
Mid-Span

POE Power Output:
Per Port DC 48V 15.4watts

Power Pin Assignment:
4/5(+), 7/8(-)

POE Power Budget:
190 watts

Management

Management Interface:
Web, smart discovery Lite

POE Management:
Power Limit by Priority and Total Limit
Per port power Enable/Disable

Management Feature:
System / Management functions setup
Web Firmware Upgrade
SNMP Trap for Alarm notification of events

Standard Conformance

Standard Compliance:
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3af Power over Ethernet

Regulation Compliance:
FCC Part 15 Class A, CE



Ordering Information

DCE/48V-POEI-12PH                 48V POE INJECTOR 12 PORT
