Ordering Information



UDS/62005083 RACK ADAPTER
UDS/62005098 Nest Adapter for Standalone Modems with Mini LCD
UDS/62005201 Model 01 – 110/120 VAC 16 qty. RJ-45 Telco jacks, 16 DB25 DTE 19” wide
UDS/62005202 Model 02 – 110/120 VAC 16 qty. RJ-45 Telco jacks, 50 pin mass termination DCE connectors, 16 DB25 DTE 19” wide
UDS/62005203 Model 03 – 110/120 VAC (NO BACKPLANE) 19” wide
UDS/62005220 Model 20 - 48 VDC 2 qty. single-50 pin mass termination DCE connectorst; 16 DB25 DTE 23” wide
UDS/62005221 Model 21 - 48 VDC 2 qty. single-50 pin mass termination DCE connectorst; 16 DB25 DTE 19” wide
UDS/62005223 Model 23 - 48 VDC (NO BACKPLANE).  DCE and DTE connectors not included - customer must order individual backplane segments separately 19” wide
UDS/62005224 Model 24 – 48 VDC 2 qty. RJ-45 Telco jacks, 16 DB25 DTE 19” wide

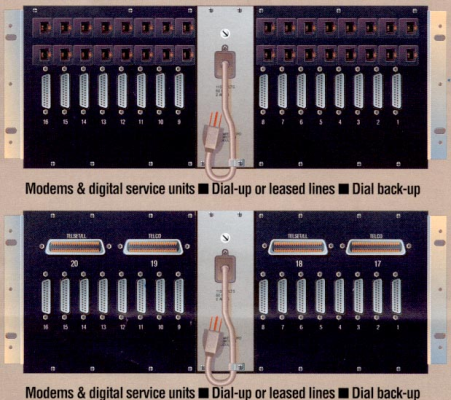

UDS//62005227 Model 27 - 110/120 VAC 16 qty. RJ-45 Telco and Telset jacks with dial backup support; 16 DB25 DTE 19” wide
UDS/62005228 Model 28 - 110/120 VAC 2 qty. Dual-50 pin mass termination DCE connectors with dial backup support; 16 DB25 DTE 19” wide
UDS/62005233 Model 33 - 48 VDC 16 qty. RJ-45 Telco and Telset jacks with dial backup support; 16 DB25 DTE 19” wide
UDS/62005234 Model 34 - 48 VDC 2 qty. Dual-50 pin mass termination DCE connectors with dial backup support; 16 DB25 DTE 19” wide
UDS/62005502 Model 502 - 220/240 VAC 16 qty. RJ-45 Telco and Telset jacks with dial backup support; 16 DB25 DTE 19” wide
UDS/52005337 *OEM VERSION ONLY*  Model 37 - 110/120 VAC 16 qty. RJ-45 Telco and Telset jacks with dial backup support; 16 DB25 DTE 19” wide
UDS/6500204900010 Power Supply 110/120 VAC spare or replacement unit
UDS/6500238500010 Power Supply Card 48 VDC spare or replacement PWA
UDS/6500304800010 Power Supply 220/240 VAC spare or replacement unit
UDS/72005201 Model 01 – One 90/265VAC PS 16 qty. RJ-45 Telco jacks, 16 DB25 DTE 19” wide
UDS/72005201-R Model 01 – Two 90/265VAC PS 16 qty. RJ-45 Telco jacks, 16 DB25 DTE 19” wide
UDS/72005202 Model 02 – One 90/265VAC PS 16 qty. RJ-45 Telco jacks, 50 pin mass termination DCE connectors, 16 DB25 DTE 19” wide
UDS/72005202-R Model 02 – Two 90/265VAC PS 16 qty. RJ-45 Telco jacks, 50 pin mass termination DCE connectors, 16 DB25 DTE 19” wide
UDS/72005203 Model 03 – One 90/265VAC PS (NO BACKPLANE) 19” wide
UDS/72005203-R Model 03 – Two 90/265VAC PS (NO BACKPLANE) 19” wide
UDS/72005227 Model 27 S  RM16M Nest, One 90/265VAC PS,19" Dual Mod, 90/265VAC,16 RJ-45 Telco&Telset Jacks,Dial Back-up,16 DB25 DTE
UDS/72005227-R Model 27 DR   RM16M Nest, Two 90/265VAC PS,19" Dual Mod,90/265VAC,16 RJ-45 Telco&Telset Jacks,Dial Back-up,16 DB25 DTE
UDS/72005228 Model 28 S   RM16M Nest, One 90/265VAC PS, 19" Dual 50-Pin, Mass Term, DCE Connectors, Dial Back-up,16 DB25 DTE
UDS/72005228-R Model 28 DR  RM16M Nest, Two 90/265VAC PS, 19" Dual 50-Pin, Mass Term, DCE Connectors, Dial Back-up,16 DB25 DTE
UDS/72005000-R RM16M Nest, 90/265VAC, Dual Power Supply Kit to upgrade single, full-size supplies.
UDS/PS-RM16-AC-R Power Supply, 90/265VAC, Single Slot for 7200 Series Dual AC RM16M
