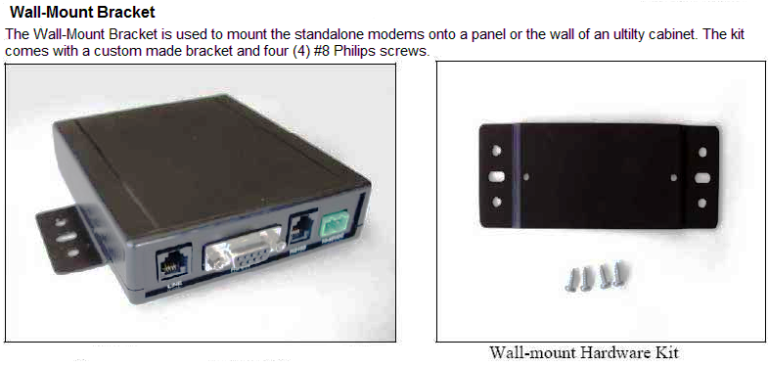

The Data Connect IG-WMB Wall-Mount Bracket

Installation

Installing the wall-mount kit:
1. Place the modem upside down on a desk or table top
2. Remove the two screws holding the top and bottom cover of the plastic enclosure
3. Place the mounting bracket on top of the bottom cover with two mounting holes aligned
4. Attached the mounting bracket securely to the bottom cover with the two screws removed from step 2
5. Installed the modem with the mounting bracket onto the wall or panel using the screws provided
