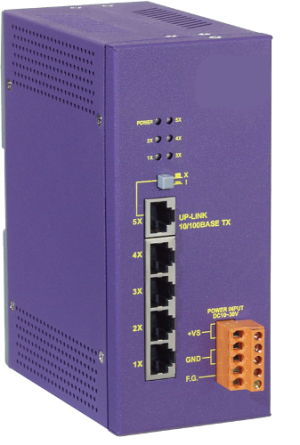

Data Connect ANS105
Industrial Ethernet Switch with 5-Port

The Data Connect ANS-105 Industrial Switches are DIN-Rail mounting and designed for industrial environments. Their rugged packaging and protected circuitry keep them working under conditions that may cause office-grade units to fail. The Data Connect ANS-105 comes with multiple ports, each capable of transmitting or receiving information simultaneously at full wire speed to control and allocate the network bandwidth. The ANS-105 automatically determines remembers where an Ethernet device is located and routes the messages through the appropriate port. This minimizes network loading and enables true deterministic communications over Ethernet.


  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, and IEEE 802.3x flow control standards
  • Provides 5 10/100Mbps switch port
  • Each port supports both 10/100Mbps  speed Auto-Negotiation and Auto-Sensing
  • Full/Half Duplex operation for each port
  • Support 8K MAC addresses
  • Store-and-forward architecture
  • Non-blocking switching
  • Support Full-Duplex Flow Control (IEEE 802.3x)
  • Back-pressure flow control in half duplex mode
  • Compact design with small footprint
  • DIN-rail mount for industrial usage



  • Port Configuration: Auto-negotiation for connection speed and duplex type
  • Connector: Shielded RJ-45 Jack
  • Each port supports both 10/100Mbps speed Auto-negotiation and auto-sensing
  • Cables

*10Base-T (Cat.3, 4, 5 UTP cable, 100m max.)
*100Base-T (Cat.5 UTP cable, 100m max.)

  • Filtering Address: Unicast / Multicast / Broad address: 8K MAC addresses per unit
  • Filtering rate: 14,880 PPS for Ethernet,14,8800 PPS for Fast Ethernet
  • Forwarding rate: 14,880 PPS for Ethernet, 14,8800 PPS for Fast Ethernet
  • RAM Buffers: 2MB
  • LEDs:
  • Power Status
  • 10/100, Link/Activity, Duplex/Collision status for each port
  • Environment:

*Temperature: 0°C ~ 60°C
*Relative Humidity: 10% to 90% non-condensing
*Dimensions: 160mm x 70 mm x 125 mm
*Power: DC 10~30V, 7W

Ordering Information

DCE/ANS105                Unmanaged Industrial Ethernet Switch

Call 301.924.7400 X25 for Special Sale Ordering Information on Option
