Data Connect
2178WEE Wireless Ethernet Extender



The Data Connect 2178WEE Wireless Ethernet Extender is an ideal and inexpensive way to extend Ethernet when no fiber or copper wiring is available. This means any computer or wireless—enable network device such as camera, security, and phone can connect to LAN without an additional cable via the DCE 2178WEE Wireless Ethernet Extender. In addition the DCE 2178WEE offers a four port switch physical LAN ports for any server, switches or network device.

The DCE 2178WEE Wireless Ethernet Extender allows speed at up to 150Mbps by utilizing the new 802.11n wireless network capability. The radio coverage is doubled from the standard and high speed wireless connection twice as far as non- Ethernet Extender Wireless networks. The DCE 2178WEE can also communicate with the 802.11n, 802.11g, 802.11b standards.

In addition, for maximum network security, the DCE 2178WEE Wireless Ethernet Extender supports the most up to date encryption including WEP, WPA-PSK AND WPA2-PSK. In order to simplify the security settings, the DCE 2178WEE also supports WPS configuration with PBC/PIN types for users to connect to secured wireless network easily.

The Data Connect 2178WEE Wireless Ethernet Extender has user-friendly management interfaces so that it can be managed by workstations running standard web browsers. The DCE 2178WEE provides DHCP server, NAT, Virtual Server, DMZ, Access Control, IP Filter, PPTP/IPSEC pass-through, DDNS, and UPnP compatibility. Furthermore for VPN tunnel, the DCE 2178WEE supports PPTP/IPSec tunneling.

The Data Connect 2178WEE Wireless Ethernet Extender can also be configured to function as Wireless ADSL2/2+ Router compliant with 802.11 and features 1T!R MIMO antenna technology. This allows your office to have both wireless Ethernet extension and high speed ADSL2/2+ broadband internet connection. The DCE 2178WEE supports PPPoA (RFC 2364 – PPP over ATM adaption layer 5), RFC2684 encapsulation over ATM (bridged or router), PPP over Ethernet (RFC 2156) and IPoA (FRC1483) to establish a connection with an ISP.

The Data Connect 2178WEE Wireless Ethernet Extender provides the security of an internet firewall to protect the network from being accessed by authorized users. The DCE 2178WEE offers Network Address Translation (NAT). All the incoming and outgoing IPs can monitor and filtered and it can block internal users from accessing the internet, identified websites and content. This is wireless Ethernet extension – the way it is meant to be, fast, flexible and secure.

Features

  • 4-Port Switch
  • DHCP Server Support
  • Support IEEE 802.11b, g, and 802.11n Wireless Standard
  • 802.11n Technology
  • WEP Support
  • WPS Push Button Control
  • WPA-PSK Support
  • Wireless MAC Access Control

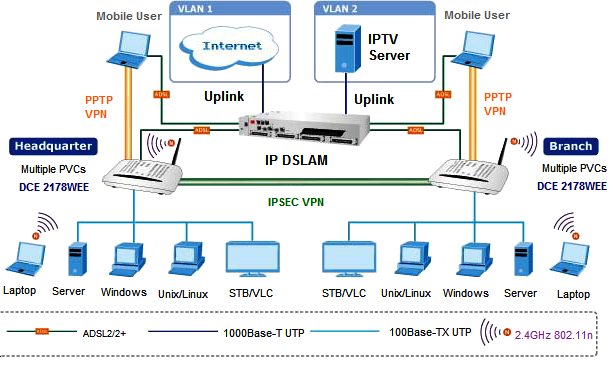

Application

Specifications

Standards

Compliant with ADSL Standard
– Full-rate ANSI T1.413 Issue 2
– G.dmt (ITU G.992.1)
– G. lite (ITU G.992.2)
-G. hs, Multimode (ITU G.994.1)

Capable of ADSL2 Standard
-G.dmt.bis (ITU G.992.3)

Capable of ADSL2+ Standard
-G.dmt.bisplus (ITU G.992.5)
– Reach Extended ADSL (RE ADSL)
-Supports Annex A, B, M, L

 Protocols

RFC 2364
-PPP over ATM (LLC/VCMUX)

RFC 2516
-PPP over Ethernet (LLC/VCMUX)

RFC 1483
-Classic IP over ATM (LLC/VCMUX)

RFC 2684
-Bridge IP over ATM

RFC 2684
-Routed IP over ATM (LCC/VCMUX)

AAL & ATM Support
Supports up to 8 PVCs

ATM Forum UNI 3.1/4.0 PVC
VC and LLC Multiplexing
Integrated ATM AAL5 support ( UBR, CBR, VBR-RT, and VBR-NRT)
0~255 VPI plus 1~65535 VCI address range
OAM F4 & F5 Segment end-to-end loop-back, AIS and RDI OAM cells

Ports

LAN
-4 x Ethernet (10/100Mbps, Auto-Negotiation, Auto MDI/MDI-X

WLAN
-1 x 802.11b/g/n Access Point with one 2dBi dipole antennas

WAN
-1 x RJ-11

LED Indicator
– PWR, Link, Data, LAN 1~4, WLAN, WPS

Button
-WLAN, Reset, WPS, Power

Max. Concurrent sessions
– 2048

Wireless Standard
– IEEE 802.11b, g and 802.11n

Wireless Frequency
2.4 to 2.4835GHz (Industrial Scientific Medical Band)

Wireless Channels
Maximum 14 Channels, depending on regulatory authorities

Wireless Data Encryption
64 bit / 128 bit WEP, WPA-PSK / WPA2-PSK, and WPS PBC

Wireless Data Rate
-Maximum up to 150Mbps

IEEE 802.11b
-1/ 2/ 5.5/ 11Mbps

IEEE 802.11g
– 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54Mbps

IEEE 802.11n 20MHz
-14/ 29/ 43/ 58/ 87/ 116/ 130/ 144Mbps

IEEE 802.11n 40MHz
– 30/ 60/ 90/ 120/ 150Mbps

Protocol / Features
NAT supports PAT and multimedia applications
NAT, Static Routing, and RIPv1/2
Transparent Bridging
Dynamic Domain Name System (DDNS)

SNTP
DNS relay and IGMP proxy
DMZ and Virtually Server
Quality of Service (QoS) for Traffic Prioritization
TR-069 Ready
UPnP

Security
PPP over PAP (Password Authentication Protocol, RFC1334)
PPP over CHAP (Challenge Authentication Protocol, RFC1994)
DoS Protection
Access Control
ACL (Access Control)
IP/MAC /Application/URL Filter
Stateful Packet Inspection (SPI) Firewall
Password Protection for system management
VPN
VPN pass through
PPTV VPN
IPSec VPN

Management
Web-based configuration
Embedded Telnet server for remote and local management
Firmware upgraded and configuration data upload/download via WEB
SNMP v1/v2 MIB supported
Support DHCP Server/Client/Relay
Built-in Diagnostic tool and IP Ping

Dimension (W x D x H)
-6-15/16 x 4-7/8 x 1-3/8 in

Power
-12VDC, 0.8A

Operating Environment

Operating Temperature: 0~50°C

Storage Temperature:
-10~95% non-condensing

Emission
-FCC, CE

Ordering Information

DCE/2178WEE

Call 301.924.7400 X25 for Special Sale Ordering Information on Option
