2178MPEE Ethernet Extender

The Data Connect DCE/2178MPEE Industrial Grade Multi Port Ethernet Extender is a one 4-port 10/100Base-TX switch and one 2-wire Ethernet port used to extend Ethernet up to 300 meters (984ft) at 50 Mbps over two existing voice grade copper wires. A simple single switch allows for a choice between local or remote setting. Thus select local for side A of the circuit and select remote for side B of the circuit. The DCE/2178MPEE is fully managed via SNMP, Web Browser, and Telnet or console port and is designed to integrate 10/100Mbps networks into VDSL backbone. The DCE/2178MPEE supports advance features such as 802.1Q VLAN, MAC-based Trunking, IPMulticast IGMP Snooping, and Rapid Spanning Tree for Redundancy, QOS foe priority Queuing, and Port Mirroring. The DCE/2178MPEE functions at temperatures ranging from -40°C to 75°C (-40°F to 167°F) and tested for functional operation at -40°C to 85°C (-40°F to 185°F). The DCE/2178MPEE complies with NEMA TS1 & TS2 that meets with Environmental requirements for Traffic Control equipment and complies with IEC61000-6-1 EMC, a Generic Standard Immunity for the industrial environment.

Features

  • Complies with NEMA TS1 & TS2 Environmental requirements Traffic Control equipment
  • Complies with IEC61000-6-2 EMC Generic Standard Immunity for industrial environment
  • Ethernet Port: 10/100Mbps – Full/Half duplex, Auto-Negotiation, Auto-MDI/MDI-X
  • Ethernet Extender (RJ11 and Terminal) Port: Symmetrical on the VDSL, High speed, Full-duplex, 50Mbps communication link over existing copper Telephone Line
  • -40°C to 75°C ( -40°F to 167°F) operating temperature range
  • 1000Mbps –Full Duplex, 10/100Mbps-Full Duplex , Auto-Negotiation, Auto-MD/MDX
  • RS232 Console, Telnet, SSL/SSH, SNMP V1, V2C, & V3, RMOM, Web Browser and TFTP Management
  • Data Connect Proprietary ‘a-ring’ support for Network Redundancy; recovery time < 15ms
  • IEEE802.1w RSTP, IEEE802.1s  MSTP and IEEE802.1D STP compatible
  • Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
  • IP Multicast Filtering through IGMP snooping V1, V2, &V3
  • IEEE802.1P QOS with four priority queues
  • MAC-based Trunking with automatic link fail-over
  • Supports Command Line Interface in RS232 Console
  • Supports IEEE802.1X Security
  • Bandwidth Rate Control
  • Per-port programmable MAC address locking
  • Up to 24 Static Secure MAC addresses per port
  • Port Mirroring
  • Full wire-speed forwarding rate
  • Redundant Power Input with Terminal Block and DC Jack
  • Hardened aluminum case
  • Supports NTP

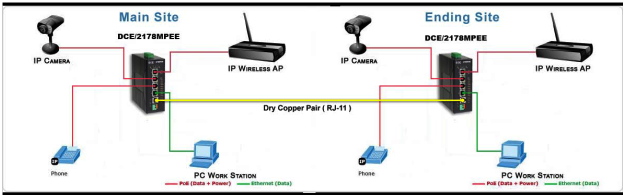

Application – Multi Port Point-to-Point

Specifications



Technology



Standards:
IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX, Ethernet over VDSL, IEEE802.3x, IEEE802.1p, IEEE802.1Q, IEEE802.1w, IEEE802.1x



Forward and Filter Rate:
14,880pps for 10Mbps, 148,810pps for 100Mbps



Packet Buffer Memory:
2M bits



Processing Type:
Store-and-Forward, Half-duplex back-pressure and IEEE802.3x full-duplex flow Control
Address Table Size: 8192 MAC addresses Power



Input:
Input Voltage: 12 to 48VDC (Terminal Block); 12VDC (DC jack)



Power Consumption:
11W Max. 0.92A@12VDC, 0.46A @ 24VDC



Overload Current Protection:
Present



Reverse Polarity Protection:
Present

Mechanical
Casing:
Aluminum case, IP 30

Dimensions:
60mm (W) x 125mm (D) x 145mm (H), 92.36” (W) x 4.92” (D) x 5.7” (H)

Weight:
1.1kg (2. 42kg)

Installation:
Din-Rail

Interface
Ethernet Port:

10/100Base-TX: 4 ports

Ethernet Extender Ports:
RJ-11 and Terminal Block port: 1port, Speed: 1/3/5/10/15/20/25/30/40/50 Mbps, Distance: 1900meters (6,232ft) Cable: Telephone line 24 AWG (0.5mm diameter, 1-piar wire) or larger

Console Port:
Port: One DB9 RS-232 port
Per Unit: Power Status (Power 1, Power 2, & Power 3), Per Port: 10/100TX: Link/Activity, Speed Extender Port: Link: DIP Switch:
One DIP switches: Local (CO) or Remote (CPE)

Alarm Contact:
One relay output with current 1A@24VDC

Environment

Operating Temperature:
-40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity:
5% to 95% (non-condensing)

Regulatory Approvals:
ISO:

Manufactured in an ISO9001 facility

EMI:
FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3

EMS:
EN6100-6-2, EN6100-4-2 (ESD Standard), Contact: + / 6KV; Criteria B, Air: + / – 8KV; Criteria B
EN6100-4-3 (Radiated RFI Standards), 10V/m, 80 to 1000MHz; 80% AM Criteria A
EN6100-4-4 (Burst Standards), Signal Ports: +/- 4KV; Criteria B D.C. Power Ports; +/- 4KV; Criteria B
EN6100-4-5 (Surge Standards), Signal Ports: +/-1KV; Line-to-Line; Criteria B, D.C. Power Ports: +/- 0.5KV; Line-to-earth; Criteria B
EN6100-4-6 (Induced RFI Standards) Signals Ports: 10Vrms @0.15~80MHz; 80% AM Criteria A D.C. Power Ports: 10Vrms @0.15~80MHz; 30A/m @ 50, 60Hz; Criteria A

Environmental Test Compliance:
IEC60068-2-6 FC (Vibration Resistance)
5g        @         10~150KHz,      Amplitude         0.35mm
(Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g @ 11ms (Half-Sine Shock Pulse; Operation)
50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall), 1M (3.281ft)

Ordering Information

DCE/2178MPEE
DCE/2178MPEE-2Pk
DCE/2178MPEE-DC12J
DCE/2178MPEE-DC12TB
DCE/2178MPEE-DC48TB
