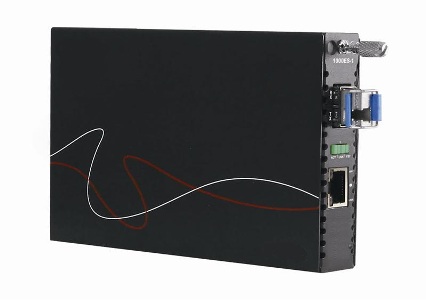

2178FEE-GB Gigabit Fiber Ethernet Extender

2178fee-gb

To provide an easy use yet powerful solution for FTTX applications, The Data Connect releases a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, 2178FEE-GB, featuring plug & play and smart media conversion functions.

Distance Extension with High Performance and Steady Network Communication
The Data Connect 2178FEE-GB Smart Gigabit Media Converter – DCE 2178FEE-GB extends communication distance with highly Gigabit performance via fiber optical cable. The DCE 2178FEE-GB provides media conversion between 1/100/1000Base-T and 1000Base-SX/LX interface such as multi –mode LC/SC connectors (220m /550m), single-mode LC/SC connector (10/20/30/40/50/70/120km) and single fiber connectors (WDM, 15/60km) for various fiber optic application.

Enhanced Smart Management Features
The Data Connect provide Auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation / force for fiber interface and Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitor the entire network.

Easy Installation
The Data Connect 2178FEE-GB allows two type segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide in module to the Data Connect 19-inch Web Smart / Management 16-slots Media Converter chassis. When working with the Web Smart / Managed Media Converter chassis, the Data Connect 2178FEE-GB is able to be managed and is status to be monitored through the local RS-232 console and remote web interface.

Application

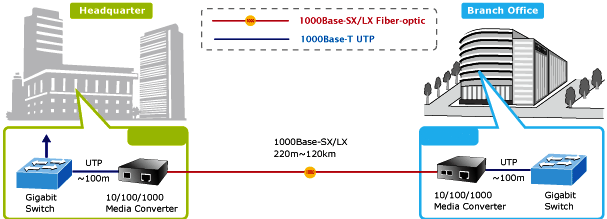

Fiber-Optic Networking for ISP, Enterprise and Home

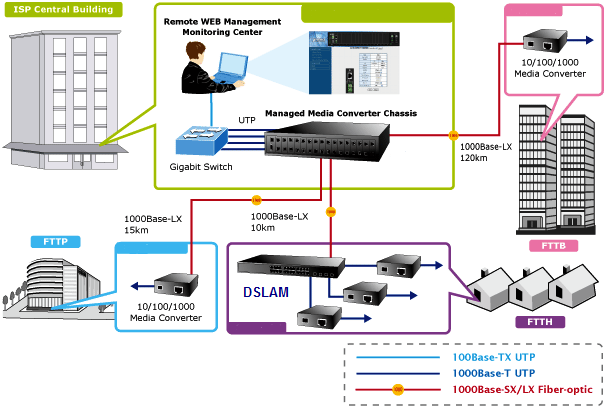

The Data Connect 2178FEE-GB provide advanced Media conversion technology- 10/100/1000Base-T and 1000Base-SX/LX interfaces to fulfill different kinds of demand as the current network grows and expanding. The Data Connect 2178FEE-GB provides diverse fiber connect type options for different network applications. It is very flexible for the 2178FEE-GB working as a standalone device or being installed in the central Web Smart / Management media converter chassis for centralized management. When working with the Web Smart/ Management media converter chassis, the DCE 2178FEE-GB is hot swappable to avoid network downtime. The Data Connect 2178FEE-GB is the ideal solution for building a network solution of FTTH (Fiber to the Home) of FTTC (Fiber to the Curb), and FTTB (Fiber to the Building) for ISPs campuses and enterprise.





Features

  • Standards:
    –       Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet Standard
  • Interface:
    –      One 10/100/1000Base-T port with RJ-45 connector
    –      One 1000Base-SX/LX port with LC/SC.WDM connector supporting multi mode or single         mode fiber optic cable
    –      Auto-negotiation and Auto-MDI / MDI-X for 10/100/1000Base-T port
  • Layer 2 Features:
    –       Back-pressure & IEEE 802.3x compliant flow control and full wire-speed forwarding rate
    –       9K Jumbo Frame size supported
    –       Link Loss Return (LLR) switch on each fiber optic to aid in troubleshooting remote network connections
    –       Link Loss Carry Forwarding (LLCF) work with LLR in diagnosing network connection
  • Smart Management:
    –       Provides DIP switch for fiber (Auto-negotiation/ Manual) and LFP function (Disable/ Enable) setting
    –       Manageable through Web Smart / Managed Media Converter Chassis System
    –       Bandwidth control / TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test function  provided with Managed Media Converter Chassis system
  • Hardware:
    –       Used as a standalone device or work with Web Smart / Managed Media Converter Chassis for up to 16 converter with redundant power supply for optional expansion use
    –       LED Indicators for converter status
    –       Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber / 1000Base-SX / LX mini GBIC module
    –       EMI standard complies with FCC, CE class A

Specifications

Model
DCE 2178FEE-GB

Hardware

Standards
IEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3ab, 1000Base-T
IEEE 802.3z, 1000Base-SX/LX
IEEE 802.3ah OAM

Ports
1 x 10/100/1000Base-T port,
1 x 1000Base-SX/LX port

Copper Interface
RJ-45 port (Auto-MDI/MDI-X) Twisted Pair

Optic Interface
10/100/1000Base-T to 1000Base-SX(SC, MM) Smart Media Converter-220m/550m / 10/100/1000Base-T to 1000Base-LX (SC,SM) smart Media Converter- 10km: SC
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: SFP
10/100/100Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm- 60km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 15km / 10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / 10/100/1000Base-T to 1000Base –LX9WDM) Smart Media Converter- X: 1550nm-60km: WDM

Optic Wavelength
10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: 850nm
10/100/1000Base-T to 1000Base-LX (SC, SM) smart Media Converter- 10km: 1310nm
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depend on SFP module: N/A
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km / RX: 1550nm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km / RX: 1310nm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km / RX: 1550nm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km / RX: 1310nm

Launch Power (dBm) Max.
10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -4dBm
10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -3 dBm
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km : -3 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : +5 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -3 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX:  1550nm-60km : +4 dBm

Launch Power (dBm) Min.
10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -9.5 dBm
10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -9.5 dBm
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -9 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km : 0 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km : -9 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX:  1550nm-60km : -1 dBm

Receive Sensitivity
10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -13.5 dBm
10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -14.4 dBm
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -21 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -25 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -21 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -25 dBm

Maximum Input Power
100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter- 220m/550m: -18 dBm
10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter- 10km: -20 dBm
10/100/1000Base-T to 1000Base-LX/SX (mini-GBIC, SFP) Smart Media Converter- distance depends on SFP module: N/A
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-15km: -3 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-15km: -3 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1310nm-60km: -2 dBm
10/100/1000Base-T to 1000Base-LX(WDM) Smart Media Converter- TX: 1550nm-60km: -2 dBm

Speed Twisted-Pair
10/20Mbps for Half / Full Duplex
100/200Mbps for Half / Full Duplex
2000Mbps for Full Duplex

Speed Fiber-Optic
2000Mbps for Full Duplex

Cable Twisted Pair
10Base-T: 2-pair UTP Cat. 3, 4, 5, up to 100m
100Base-TX: 2-pair UTP Cat.5, up to 100m
1000Base-T: 4-pair STP Cat.5 up to 100m

Cable Fiber-optic Cable
* 50/125µm multi mode fiber cable, up to 220/550m
* 9/125µm single-mode cable, provides long distance for 10/20/30/40/50/70/120km  (vary on fiber transceiver or SFP module)

LED Indicator
* PWR (Green)
* TP: 1000, LINK/ACT
* Fiber: LINK/ACT

DIP Switch
Fiber (Auto-negotiation / Manual), LFP (Disable/Enable)

Power Consumption
3.1 watts / 10BTU (maximum)

QAM
TS-1000, IEEE 802.3ah terminal

Jumbo Frame size
9K

Power Input
DC 5V /2A

Dimension (W x D x H)
81 x 94 x 26mm

Operating Environment
Temperature: 0~50°C; 5~90% non-condensing

Storage Environment
Temperature: -40~70°C; 5~90% non-condensing

Emissions
FCC Class A, CE Class A

Ordering Information

DCE/2178FEE-GB                     10/100/1000Base-T to 1000Base-SX (SC, MM) Smart Media Converter-                                                    220m/500m

DCE/2178FEE-GB-SMSC10       10/100/1000Base-T to 1000Base-LX (SC, SM) Smart Media Converter-10km

DCE/2178FEE-GB-GBICXX        10/100/1000Base-T to 1000Base-LX/SX (min-GBIC, SFP) Smart Media Converter- distance depends on SFP mode

DCE/2178FEE-GB-WDM15A      10/100/1000Base-T to 1000Base-LX (WDM) Smart Media Converter- TX: 1310nm-15km

DCE/2178FEE-GB-WDM60A      10/100/1000Base-T to 1000Base-LX (WDM) Smart Media Converter- TX: 1310nm-60km

DCE/2178FEE-GB-WDM15B      10/100/1000Base-T to 1000Base-LX (WDM) Smart Media Converter- TX: 1550nm-15km

DCE/2178FEE-GBWDM60B       10/100/1000Base-T to 1000Base-LX (WDM) Smart Media Converter- TX: 1550nm-60km

DCE/2178FEE-GB-2PK              2 Pack of the same distance options



Call 301.924.7400 X.25 For Special Sale Ordering Information on Options
