Data Connect
2178CEE-POE

The Data Connect 2178CEE-POE, an industrial grade Ethernet Extender with POE supported integrates three advanced technologies:

  • Ethernet extend over coaxial cable or phone wire
  • IEEE 802.3af Power over Ethernet
  • Industrial wide range operating temperature

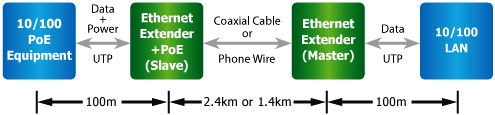

The Data Connect 2178CEE-POE is designed to utilize the commonly existed coaxial cable or phone wires to extend the UTP Ethernet over 100m distance limitation and transmit both power and data over single Ethernet cable to remote POE capable devices in heavy industrial demanding environment.

IEEE 802.3af Power over Ethernet Integrated
The Data Connect 2178CEE-POE provides 4 10/100Mbps Copper Ports with 4—Port  IEEE 802.3af Power over Ethernet injects interfaces delivered in an IP-30 rugged strong case. Supported up to 15.4watts power per port for any remote IEEE 802.3af powered device (PD) such as POE IP cameras and POE wireless LAN access point, the Data Connect 2178CEE-POE is an ideal solution to deploy surveillance system, secure control and wireless service in climatically demanding wide temperature range (-40 to +75°C) environments.

Long Reach Ethernet
To extend the network distance and provide reliable Ethernet networking in harden environments, the Data Connect 2178CEE-POE equips on asymmetric / symmetric Ethernet extender port – the extender port can be RJ RJ-11 or BNC Connector. Customers can be use either BNC or RJ-11 for their network deployment and the Data Connect 2178CEE-POE offers the absolutely fastest data transmission speed up to 99/65Mbps over existing coaxial cable and telephone wire without the need or rewiring.

Flexible Combination of Application
The Data Connect 2178CEE-POE helps users to flexibly re-deploy a new local intranet in the apartment, intelligent transportation systems, building automation, campus and hospitality environment by applying original network structure without spending extra cost. The Data Connect 2178CEE-POE can be adjusted to master or slave mode via a DIP switch. It also can be setup to connect with another one DCE 2178CEE-POE or with other Data Connect Ethernet extenders.  Therefore, users can easily expand the current network structure easily and with more flexibility.

Environmentally Hardened Design for Industrial POE Network
The Data Connect 2178CEE-POE provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or curb side traffic control cabinet. The Data Connect 2178CEE-POE is packaged in a compact, IP-30 rugged strong case that allows operating in a wide temperature range of -40 to +75°C and installation either DIN Rail or Wall Mounting for efficient use of cabinet space.



Applications

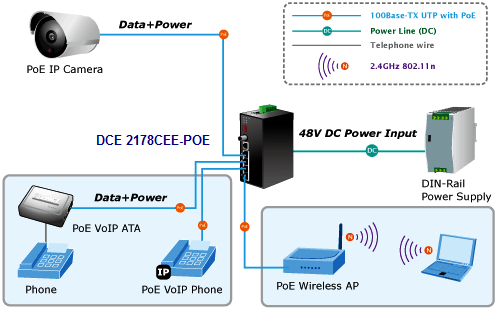

Industrial Area Department / Workgroup POE Switch
With 4 POE, in-line Power interfaces, the POE Industrial Ethernet Extender DCE 2178CEE-POE can build a power centrally controlled IP phone system, IP camera system, or wireless AP group for the enterprise. For instance, 4 IP cameras or wireless APs can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the offices without the power-socket limitation, it make the installation of cameras or WLAN AP more easily and efficiently.

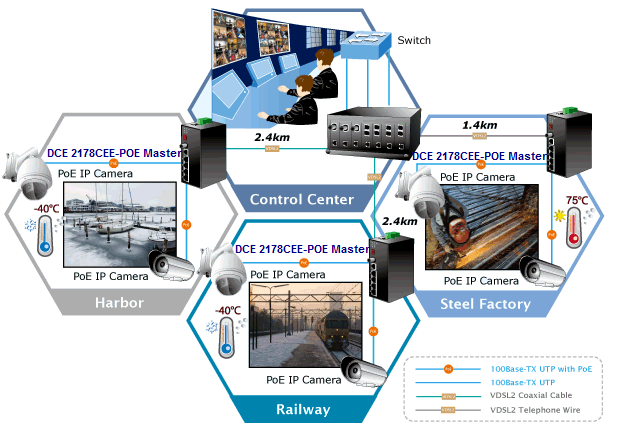

Flexible Industrial Extender integrates BNC and RJ-11 Connection
The Data Connect 2178CEE-POE can operates stably under temperature range from -40 to 75°C so it can be installed in any harsh environment. It also compatible with Data Connect Ethernet over VDSL2 converter therefore users do not need to spend extra cost to deploy a new local Internet in apartment, hotel, and campus and hospitability environment. The network administrators can re-deployment the original network structure with the Data Connect 2178CEE-POE with no further effort. On the other hand, connects and Data Connect 2178CEE-POE extenders with Master mode by using telephone line or coaxial cable. Therefore, the new network structure can be constructed efficiently.

Features

  • Ethernet over Twisted pair / Coaxial
  • Cost-effective Long Reach Ethernet (LRE) solution
  • One box design, Master / Slave mode selectable via DIP Switch
  • Selectable BNC and RJ-11 mode for the data transmission
  • Defines Asymmetric (Band Plan 998) and Symmetric band for transmission Upstream and Downstream signals

IEEE 802.3af POE

  • 4 x Ports IEEE 802.3af Power over Ethernet / PSE standard
  • 48V DC Power Input for POE and 12~36V DC for non POE devices
  • Supports POE Power up to 15.4Watts for each POE port
  • Auto-Detect powered device (PD)
  • Circuit Protection prevent power interference between ports
  • Remote power feeding up to 100m

Industrial Design

  • IP-30 Aluminum Metal case Protection
  • -40~75°C Operating Temperature
  • DIN Rail and Wall Mount Design
  • Redundant Power Design: 48V DC Power Input for POE
  • Supports EFT protection 6000V DC for power line
  • Supports 6000V DC Ethernet ESD protection

Data Communication

  • Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
  • Auto-MDI / MDI-X detection and Auto-Negotiation with Half Duplex / Full Duplex modes for 10/100Base-TX RJ-45 port
  • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)
  • Supports up to bytes packet size, 802.1Q VLAN tag transparent
  • Integrated address look-up engine, supports 2K absolute MAC address

Specifications

Model
DCE 2178CEE-POE

Hardware Specifications

Extender Ports
* Coaxial: 1 BNC, female connector
* Phone-line: 1 RJ-11, female connector

Ethernet LAN Ports:
* 10/100Base-TX: 4 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X
* 4 POE Ports (Port1~4)

DIP Switch
4 position DIP Switch

Functionally
* Master / Slave mode select
* Selectable BNC and RJ-11 mode
* Selectable target Band Plan
* Selectable target SNR mode

Encoding
* DMT (Discrete Multi-Tone) line coding
-ITU-T G.997.1
-ITU-T G.993.1
-ITU-T G.993.2 (VDSL2 Profile 17a Support)

LED Indicators
*System
P1 (Green)
P2 (Green)
Fault (Green)

*VDSL2
Master (Green)
Slave(Green)
ACT(Green)
Sync. (Green)

* 10/100Mbps port
LNK / ACT (Green)
POE In-Use (Orange)

Cabling
* Ethernet: 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
*
Ethernet: 100Base-TX: 2-pair Cat.5, 5e and 6 up to 100m (328ft)
* Coaxial Cable: -50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent;
-75ohm, RG06 (Distance up to 2.4Km)
*Twisted-pair telephone wires ( AWG24 or better) up to 1.4km

Dimension
135 x 87.8 x 50 mm

Weight
631g

Power Requirement
48V DC for POE Devices
12~36V DC for Non-POE Devices
Redundant power with polarity reverse protection function

Power Consumption
66.4Watts / 226BTU Maximum (POE)
5.64Watts /19.24BTU (None-POE)

Installation
DIN Rail kit and Wall Mount ear

Alarm
Provides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24V

Performance

BNC (Coaxial Cable)
Asymmetric (Download / Upload)
200m -> 99/65Mbps
400m -> 99/64Mbps
600m -> 97/59Mbps
800m -> 94/51Mbps
1000m -> 84/45Mbps
1200m -> 73/37Mbps
1400m -> 61/28Mbps
1600m -> 54/20Mbps
1800m -> 48/13Mbps
2000m -> 38/9Mbps
2200m -> 35/6Mbps
2400m -> 31/4Mbps

Symmetric (Download/ Upload)
200m -> 95/99Mbps
400m -> 92/97Mbps
600m -> 81/82Mbps
800m -> 71/70Mbps
1000m -> 60/57Mbps
1200m -> 50/44Mbps
1400m -> 42/33Mbps
1600m -> 37/27Mbps
1800m -> 29/22Mbps
2000m -> 23/21Mbps
2200m -> 19/17Mbps
2400m -> 19/13Mbps

RJ-11 (Phone-line)
Asymmetric (Download/ Upload)
200m -> 99/63Mbps
400m -> 91/48Mbps
600m -> 71/32Mbps
800m -> 53/18Mbps
1000m -> 38/8Mbps
1200m -> 33/5Mbps
1400m -> 28/2Mbps

Symmetric (Download/ Upload)
200m->91/99Mbps
400m -> 74/79Mbps
600m -> 54/51Mbps
800m -> 38/34Mbps
1000m -> 27/21Mbps
1200m -> 24/15Mbps
1400m -> 21/10Mbps

Power over Ethernet

POE Standard
IEEE 802.3af Power over Ethernet / PSE

POE Type
End-Span

POE Power Output
48V DC per Port, 350mA. Max. 15.4 Watts

POE Pin Assignment
1/2(+), 3/6 (-)

Standard Conformance

Regulation Compliance
FCC Part 15 Class A, CE

Stability Testing
IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3af Power over Ethernet
IEEE 802.3x Full Duplex Pause Frame Flow-Control
ITU-T
-G.993.1
-G.997.1
-G.993.2 (Profile 17a Supported)

Environment

Operating Temperature
-40 ~ +75°C

Operating Humidity
5~90%, relative humidity, non-condensing

Storage Temperature
-40~ +85°C

Storage Humidity
5~90%, relative humidity, non-condensing



Ordering Information

DCE 2178CEE-POE
DCE/2178CEE-POE-2PK
