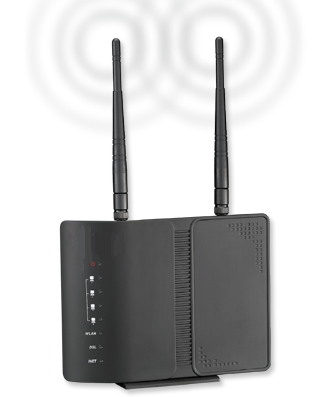

5204AV-NRD 4-Port Wireless-N ADSL VDSL Router Device

Ultra-high Data Rate at Up to 100Mbps
With up to 100Mbps* for downstream and 50Mbps for upstream bandwidths, the DCE 5204AV-NRD offers higher data transfer rates and provides higher Bandwidth than traditional ADSL gateways. A higher bandwidth allows small to medium users to enjoy quality symmetric and asymmetric applications and home users can enjoy smooth media-rich entertainment which was previously unavailable.



Advanced QoS Triple Play Services
The inherent advanced QoS features of VDSL makes 5204AV-NRD to be an idea access modem for service provider to deliver “triple play” multimedia such as high-quality digital video streams, high-speed Internet access, and voice services which are competitive to the service provided by cable and satellite operators. Besides, with Triple Play QoS, end users can enjoy the video-on-demand, on-line gaming, and E-learning with high-quality performance in the household.



Operate Over Existing Copper Wire
Telecom carriers can generate revenues by offering bundled services to successfully compete with what cable operators have to offer. A single network can be maintained to provide complete DSL services with minimal installation time and expense.



Co-exist with POTS, ISDN and Digital Phone Services
VDSL2 can be implemented quickly, even if there is only one phone line. You can still keep existing POTS or ISDN service while adding new VDSL services.

Features

  • 802.11b/g/n Wireless Access Point integrated
  • Compliant with VDSL, VDSL2 technology
  • 17a Support Fall back to ADSL2/2+ Standard
  • Extend Detachable 2Tx2R 3dBi Antennas
  • 4-Port Ethernet Switch integrated
  • Ultra-high Data Rate at Up to 100Mbps

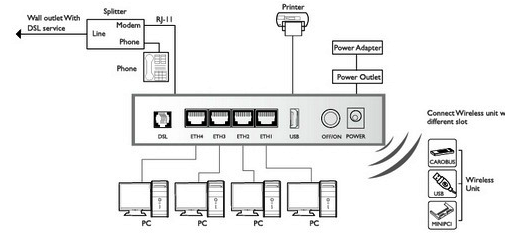

Application

Specifications

System Specification

  • VDSL Compliance

–       Duplex method: DMT

–       One VDSL Line

–       Ethernet over VDSL

–       G.993.1 VDSL

–       G.993.2 VDSL2 (Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a support)

–       Support fallback to ADSL2/2+

–       Band Plan 997 and 998 support

–       Support 3/4/5/6 band*

–       Support Up to 100Mbps downstream and 50Mbps upstream*

  • Support

–       IEEE802.3u

–       Flow control in full duplex mode

–       Back pressure in half duplex mode

–       802.11d transparent bridging

–       802.1P QoS, 4 queues support

–       IEEE 802.11b

–       IEEE 802.11g

–       IEEE 802.11n

Wireless Signal Rates

  • 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2, 1
  • 20 MHz BW: 144, 130, 117, 104, 78, 52, 39, 26,13
  • 40 MHz BW: 300, 270, 243, 216, 162, 108, 81, 54, 27

Security

  • 64/128-bit WEP
  • WPA – Wi-Fi Protected Access (TKIP, MIC)
  • WPA – PSK (Pre Shared Key)

Channels

  • 11 Channels (US)
  • 13 Channels (Europe)
  • 14 Channels (Japan)

Wireless Frequency Range

  • 2400 ~ 2484.5 MHz ISM Band

 Modulation Technology

  • Orthogonal Frequency Division Multiplexing (OFDM)
  • Complementary Code Key (CCK)
  • Packet Binary Convolution Code (PBCCTM)

Wireless Operating Range

  • Indoors: Up to 100 meters (Depends on building layout & material)
  • Outdoors: Up to 360 meter

Hardware Specifications

  • WAN: 1x RJ-11 Port
  •           1x 10/100/1000M Gigabit Ethernet Port
  • LAN: 3 x 10/100 Auto MDI/MDIX Ethernet Ports
  • 1-USB2.0 Host Port USB Storage Printer sharing
  • 1 x Power ON / OFF Button
  • 1 x Reset Button
  • 2Tx2R External Detachable 3dBi Antennas

Power Requirements

  • Input: 12V DC, 1000mA
  • Power supply: 100-240V DC Switching Mode Power Adapter

Physical Requirements

  • Dimensions: 175(W) x 175(D) x 34(H) mm
  • Weight: 418g

Environmental Requirement

  • Operating: 0°C~40°C (32°F ~ 104°F), Storage: -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating Humidity: 10% ~ 90%, non-condensing, Storage Humidity: 5% ~ 95%

Ordering Information

DCE 5204AV-NRD                     4-Port Wireless-N ADSL VDSL Router Device
