The Data Connect

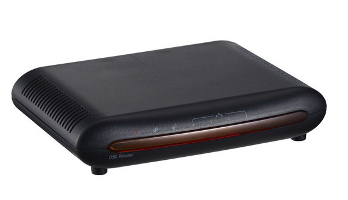

5204AV-MR/K 4-Port Wireless ADSL VDSL Router

Ultra-high Data Rate at Up to 100Mbps
With up to 100Mbps for downstream and upstream up to 50Mbps, the Data Connect 5204AV-MR/K data transfer rates and provides higher bandwidth than traditional ADSL gateways. A higher bandwidth allows small to medium business users to enjoy quality symmetric and asymmetric applications and home users can enjoy smooth media-rich entertainment which was previously unavailable.

Advanced QoS for Triple Play Services
The Inherent advanced QoS features of VDSL2 makes the Data Connect 5204AV-MR/K to be an idea access modem for service provider to deliver “triple play” multimedia services such as high-quality digital video streams, high-speed Internet access, and voice services which are competitive to the services provided by cable and satellite operators. Besides, with the Triple Play QoS, end users can enjoy the video-on-demand, on-line gaming, and E-learning with high-quality performance in the household.

Operate Over Existing Copper Wires
Telecom carriers can generate revenues by offering bundled by offering services to successfully compete with what cable operators have to offer. A single network can be maintained to provide complete DSL services with minimal installation time and expense.



Features

  • Compliant with VDSL, VDSL2 Technology
  • Capability Fall back to ADSL2/2+ Standards
  • 4-Port Ethernet Switch integrated
  • Ultra-high Data Rate at Up to 100Mbps
  • Advanced QoS for Triple Play Services
  • Operate Over Existing Copper Wires

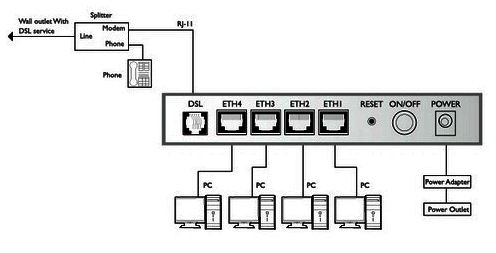

Application

Specifications

System Specification
*
VDSL Compliance
– Duplex Method: DMT
– One VDSL Line
– Ethernet over VDSL
– G.993.1 VDSL
– G.993.2 VDSL2 (Profile 8a, 8b, 8c, 8d, 12a, 12b and 17a support)
– Support fall back to ADSL2/2+
– Band Plan 997 and 998 support
– Support 3/4/5/6 band
– Support Up to Mbps downstream and 50Mbps upstream
– IEEE802.3u
– Flow control in full duplex mode
– Back pressure in half duplex mode
– 802.11d transparent bridging
– 802.1P QoS, 4 queues support

Hardware Specifications
* VDSL: One RJ-11 Port
* LAN: Four 10/100 Auto MDI/MDIX Ethernet Ports
* Status LEDs indicators

Power Requirements
* 12V DC 1000mA
* Power supply: 120V / 230V / 240V

Physical Specifications
* Dimensions: 170(W) x 130(D) x 33(H) mm

Environments Specifications
* Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
* Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
* Operating Humidity: 10% ~ 90%, non-condensing
* Storage Humidity: 5%~95% non-condensing



Ordering Information

DCE 5204AV-MR/K                   4-Port Wireless ADSL VDSL Router Device
