IG96HFP Serial Data Extender

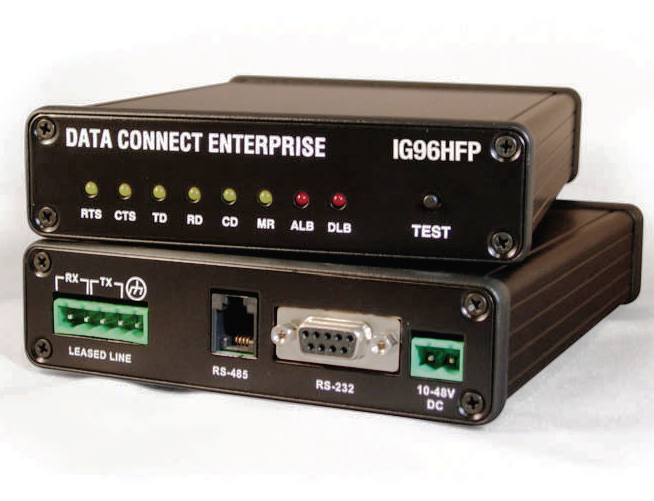

IG96HFP-SDE-pic2

The IG96HFP industrial grade 9.6 kbps hyper fast modem is designed to operate over 4-wire full duplex or 2 wire half duplex unconditioned leased lines or private metallic circuits. For optimum performance, the modem employs QAM modulations along with its adaptive equalizers to communicate over a variety of private transmissions lines at a distance up to 16.1 miles, The IG96HFP supports DTE/RTUs with an EIA RS-232 andRS-485 serial port at speeds of 9600, 4800, 2400 and 1200 bps. EIA its Auto-RTS mode, the modem can support DTE/RTUs with 3-wire serial interface (TD, RD, and SG) in multi-point polling applications.

The triple mode capability allows the IG96HFP industrial grade 9.6 kbps hyper fast poll modem to communicate with the older generation DSP9612FP at up to 9600 kbps and both the Bell 202T and V.23 FSK modem at up to 1200 bps.

The IG96HFP industrial grade 9.6 kbps hyper fast poll modem to range AC or DC power supply voltage and temperatures, with proven reliability and ease of installation, the IG96HFP is deal for point-to-multipoint polling networks, where fast training time and low-network latency are critical for system performance.

Specifications

Triple Mode:
Hyper Fast Poll mode at 9600, 17.5 ms RTS-CTS delay QAM mode at 9600/4800/4200bps 23 ms RTS-CTS delay FSK mode for Bell 202T (0-1800) modes

DTE/RTU Interface:
RS-232 interface with full control signals support (db-9F) RS- 485/RS422 support, 4-wire F.D., or 2-wire H.D Auto RTS and forced RTS options to support 3-wire interface

Private Line Interface:
Telco 2- or 4- wire conditioned or unconditioned lines private metallic 2 or 4 wire circuits. Cable equalizer for long distance over standard cables Private Line at a distance up to 16.1 miles

Mechanical:
Enclosure Dimensions:
5.0” (W) x 6.75” (L) x 1.3” (H).
127mm (W) x 172mm (L) x 33mm (H)

 Diagnostics:
Local or remote Analog + digital loopback Eight (8) front panel LEDs for status monitoring AC and DC

Power Support:
Standalone: 10-48 VDC, 85-400 VDC, 100-240 AC
Rack Mount modules: Plug-in RM16M modem rack

Environment:
Operating temperatures:-40 to 85 degrees Celsius
Storage temperature:-40 to 100 degrees Celsius
Humidity: up to 95% non-condensing

 Optical Mounting Kits:
Wall-mount or panel-mount kit
DIN rail mounting kit

Power+ Current Consumption:
125 mA @ 12 VDC
28.0 mA @ 48 VDC

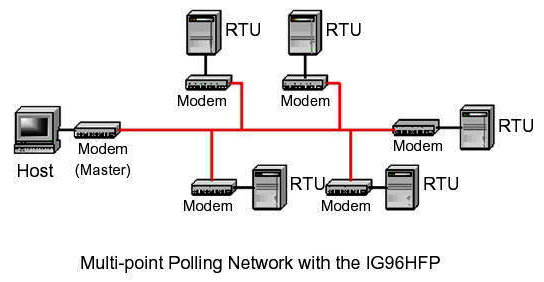

Application

ig96hfp-SDE-app



Ordering Information

DCE/IG96HFP                                       Standalone (100-240VAC)

DCE/IG96HFP-LV                                  Standalone (10-48 VDC)

DCE/IG96HFP-HV                                 Standalone (100-240VAC, 85-400 VDC)

DCE/IG96HFP-RM                                 RM16M Rack-Mount Module

DCE/96HFP-WMB                                 Wall-Mount/Panel-Mount Kit

DCE/IG96HFP-DIN                                DIN Rail Mounting Kit
