IG 202T Serial Data Extender

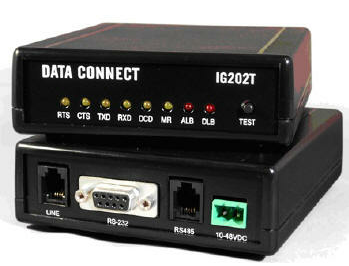

ig202T-21

The Data Connect low speed IG202T Industrial Grade Bell 202 modem is designed and manufactured for rugged industrial communication networks. The IG202T delivers cost effective and reliable 1200bps asynchronous solutions for point to point and multipoint connectivity.

The IG202T Industrial Grade Bell 202 modem is ideal for industrial communication application including SCADA systems, RTUs, traffic monitor and control, and industrial and automation networks. The IG202T supports RTUs with switch selectable settings and no AT command set required. The IG202T modem is designed to operate over 4-wire full duplex or 2-wire half duplex over unconditioned leased lines or private metallic circuits. For optimum performance, the modem employs FSK modulation to be compatible with Bell 202 standards, which can communicate over a variety of private transmission lines at a distance up to 10 miles.

The IG202T Industrial Grade Bell 202 modem can operate over a wide range of AC or DC power supply voltages and temperatures. With Proven reliability and ease of installation the IG202T is ideal for point-to-point and point-to-multipoint polling networks, where reliability and low-network latency are critical for system performance. With its Auto-RTS mode, the modem can support DTE/RTUs with 3-wire serial interface (TD, RD, and SG) in point-to-point and multi-point polling applications.

The IG202T industrial grade Bell 202 modem has selectable EIA RS-232/V.24 and RS-485 DTE support. It also features built-in diagnostics for local and remote testing. The configuring and options on the IG202T is provided by DIP switches and jumpers, eliminating the need for an AT command set. The IG202T has heavy-duty surge protection at the power supply and leased line inputs. IG202T also uses an isolated DC to DC power converter for protecting critical DC or battery power systems.



Specifications



Data Rate Support:
Data Speed 0-1200 bps in Bell 202T mode Data Format Asynchronous, transparent character format (10 or 11-bit character with 1 or2 stop bits)

 Modulation:
Frequency Shift Key (FSK)
Bell 202 Mode: Mark 1200 Hz
Space 2200 Hz
Soft Carrier 900 Hz

 Transmission Line Interface:
Leased Line TELCO voice band 2 or 4 –wire leased lines Private or Metallic circuits 2 or 4 –wire, 19-26 AWG Connector: 4 PIN RJ-11C modular jack Private Line at a distance up to 10 miles Transmitter output level: 0 to -12dbm, selectable

 DTE/RTU Interface:
The modem provides serial ports to support either the RS-485 Interface standards

RS-232 Interface:
Connector: D9-F Signals RTS, CTS, CD, TD, RD, DSR, and SG

 RS-485 Interface:
Connector: RJ-11C Signals: 4-wire full-duplex TX+, TX-, RX+, RX FRONT

 Panel Indicators & Control:
RTS, CTS, TD, CD, RD, MR, ALB, DLB TEST Switch: Push Button for Analog Loopback, Digital Loopback

 AC & DC Power Support:
Standalone: 10-48 VDC: 85-400 VDC, 100-240VAC
Rack mount module: plug-in RM16M modem rack

 Power + Current Consumption:
75 Ma @ 12 VDC
18 Ma @ 48VDC

 Mechanical:
Enclosure dimensions:
4.1” (W) x 4.9” (L) x1.4” (H)
104mm (W) x 125mm (L) x36mm (H)
Weight: 0.51lbs, without AC power module

 Environment:
Operation: -40 Degrees Celsius to + 85 Degrees Celsius
Storage: -40 Degrees Celsius to + 85 Degrees Celsius
Humidity: up to 95% non-condensing

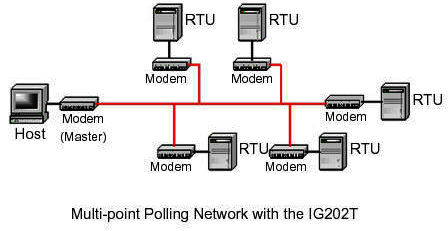

Application

ig202tapp

Ordering Information



DCE/IG202T                             STANDALONE (100-240 VAC)
DCE/IG202T-DC                        STANDALONE (10-48 VDC)
DCE/IG202T-HV                        STANDALONE (100-240 VAC, 85-400 VDC)
DCE/IG202T-RM                        RM16M RACKMOUNT MODULE
DCE/IG202T-WMB                     WALL-MOUNT/PANEL-MODULE
DCE/IG202T-DIN                       DIN-MOUNT KIT
