5204V-MR VDSL2 Modem Router

5201V-BM-pic

Very High-speed Connectivity for Internet Access and IPTV Service
The Data Connect 5204V-MR is a single VDSL2 port Modem Router equipped with four Ethernet ports by embedded 10/100Mbps Ethernet Switch. Compliant with ITU-T G.993.2 VDSL2 standard, the Data Connect 5204V-MR supports the highest rate of up to 100Mbps/100Mbps in VDSL2 Profile (30a) with a 6-band solution. Since VDSL2 has the characteristic of faster rates over shorter distances, the ideal architecture for Telecoms is to use fiber optic lines as the backbone and a VDSL2 line as the last mile into the home or office.  VDSL2 operates over copper wires so that telecom operators can provide bundled services to end-users similar to those that cable operators offer. With outstanding throughput, the Data Connect 5204V-MR can complement a fiber network to offer the best solution for delivering IPTV or home entertainment services. The Data Connect 5204V-MR also supports both central office (CO) and customer-premises Ethernet packets between VDSL2 port and the Ethernet ports, the Data Connect 5204V-MR also supports both central office (CO) and customer-premises equipment (CPE) modes for back-to-back applications. Besides forwarding Ethernet packet between VDSL2 port and Ethernet ports, The Data Connect 5204V-MR also provides Hardware IGMP snooping for IGMP v1/v2 to facilitate IPTV service without interfering with other applications.

Features

  • Compliant with ITU-T G.993.2 VDSL2 Standard
  • VDSL2 Profiles: 8a/b/c/d, 12a/b, 17a, 30a
  • Band Plan 997 and 998 supported
  • Supports Back-to-back application
  • Annex A, Annex B, Annex C supported
  • US0 Supported
  • OLR Supported  Ethernet packets over VDSL2
  • Ethernet packets over VDSL2
  • Integrated 4-port Ethernet Switch
  • DIP settings for RT/COT

Benefits

Standard-compliant to ITU-T G.993.2 The Data Connect 5204V-MR complies with the international standards and interoperates with major/open chipsets. It supports different profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a); different band plans (997, 998, and proprietary) and different annex types (Annex A, Annex B, and Annex C), by factory settings to fit into different requirements. Benefit from the latest chip design technology, The Data Connect 5204V-MR consumes less power (less than 2 watt per VDSL2 port) and has shorter training time to make device up and running.

Long Reach Ethernet (LRE): Back-to back Applications In addition to using one the Data Connect 5204V-MR to connect to ISP/Telco’s DSLAM for accessing Internet or video services, users can utilize a pair of the Data Connect 5204V-MR for back-to-back applications. Theoretically the maximum length for Ethernet cable is within 100 meters. With two Modem Routers users can have 100/100Mbps connectivity over a twisted pair phone line up to 200meter longer. This Capability can help users to bridge two distinct LAN segments in longer distance or have to surveillance service a little farther over existing twisted-pair phone cable.

Easy Installation The Data Connect 5204V-MR is easy to use. Simply connected the hardware interfaces without the need for complicated configuration efforts, the device will synchronizes with VDSL2 DSLAM (VTU-O) in auto-negotiated mode and allow users to access the Internet or watch IPTV instantly.

Application

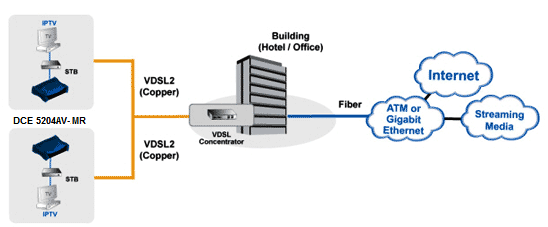

Deployment scenario for VDSL using FTTx (DCE 5204V-MR – VDSL2 Modem Router)

5204v-mr-app

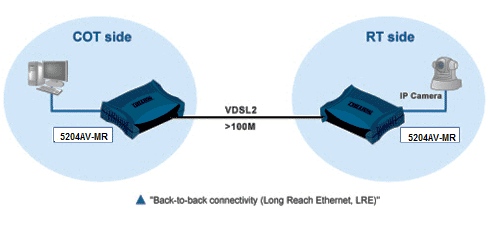

Back-to-Back Connectivity (DCE 5204V-MR – VDSL Modem Router)

5204V-MR-app2

Specification

VDSL2 Compliance
– Compliant with VDSL2 Standard, ITU-T G.993.2
– VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
– Supports 997 and 998 Band Plans
– Supports Annex A, Annex B, and/ or Annex C
– Upstream / Downstream connection rates 100/100Mbps
– OLR (On Line Reconfiguration), US0 Supported
– Supports Ethernet 802.3ah

Network Protocols and Features
– Transparent bridging
– Ethernet over VDSL (EoVDSL) Bridging
– IEEE 802.3/3u compliant
– Hardware IGMP Snooping for IGMP v1/v2

Management
– Simple management function via console port
– Firmware upgradeable (on demand)

Hardware Specification
Physical Interface
– VDSL: one RJ-11 connector
– DIP Switch: DIP4 for Configuring RT/COT mode
– Ethernet: 4-port 10/100Mbps auto crossover (MDI / MDI-X) Switch
– Console: PS2, for management function
– Power Jack
– Power switch
Physical Specifications
– Dimensions: 7.09” x 4.72” x 1.57” (180mm x 120mm x 40mm)
Power Requirements
– Input: 12V DC, 1A

Operating Environment
– Operating temperature: 0 ~ 40°C
– Storage temperature: -20 ~ 70°C
– Humidity: 20 ~ 95% non-condensing

Ordering Information

DCE 5204V-BM                       VDSL2 Bridge Modem
DCE 5204V-MR                       VDSL2 Modem Router
