2178EE-MCC Ethernet Extender & Media Converter Chassis

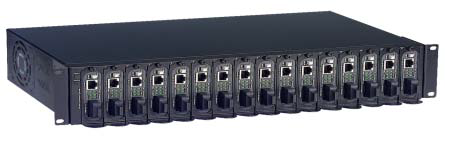

2178EE-MCC1

The Data Connect 2178EE-MCC is a metal-cased chassis system that can house up to sixteen stand-alone Ethernet Extender and Media Converters. This makes for an ideal central point. The Data Connect 2178EE-MCC includes two standard redundant power supplies, four cooling fans, and a secure and higher capacity housing four your network central point to contain and power up to 16 Ethernet Extenders and Media Converter. This chassis system is capable or hot-swap installation of Ethernet Extenders and Media Converters and Redundant Power Supplies. There is one cooling fan inside each redundant power supply and two additional fans that are fitted on the inside wall of the chassis to ensure good ventilation.

Features

  • Non-stop operation and minimal downtime
  • House up to sixteen Ethernet Extender or Media Converters
  • Hot-Swappable: Ethernet Extenders, Media Converters and redundant power supply modules
  • Redundant 100 ~ 240VAC 50 ~ 60Hz Internal Universal PSU or 48VDC Power input
  • Power redundancy: The other redundant power supply module is capable of taking over immediately if one of the power supply modules fails
  • Load sharing: Two internal power supply modules provided for load sharing purposes
  • Power isolation: Ethernet Extender or Media Converter bay power isolation ensures each bay is electricity isolated from each other
  • Over current protection: Fuse on PCBA for each Ethernet Extender Media Converter bay and power supply module
  • 0°C to 45°C (32°F to 113°F) operating temperature range
  • Metal case, standard 19” rack-mount size, two-unit –height
  • Supports Rack Mounting installation

 Specifications

Power Input:
100 ~ 240VAC, 50 ~ 60Hz Internal Universal PSU 48VDC, Consumption: 73.2W Max.

Dimensions:
440mm (W) x 276mm (D) x 90mm (H), (17.32” (W) x 10.87” (D) x 3.54” (H)), Standard 19” rack-mount size, 2-unit-height

Weight:
6.8Kg (14.96lbs)

Installation:
19” Rack Mounting

LED Indicators:
Per Unit, Power Status Chassis Power)

Operating Temperature:
0°C to 45°C (32°F to 113°F)

Storage Temperature:
-10°C to 70°C (14°F to 158°F)

Ambient Relative Humidity:
5% to 90% (non-condensing)

Regulatory Approvals:
ISO –Manufactured in an ISO9001 facility, Safety – UL60950-1

Emission Compliance:
CE Mark Class A; FCC Part 15 Class A

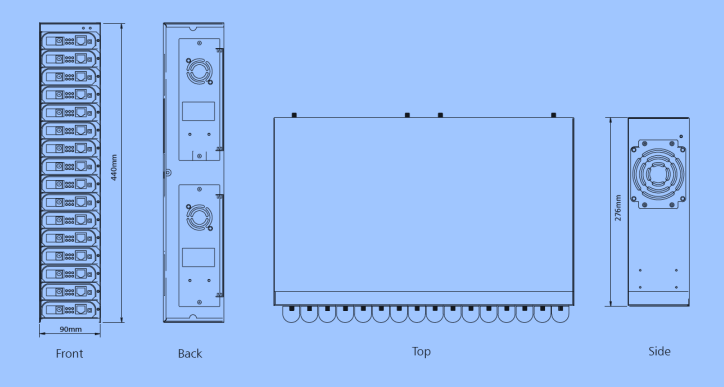

Diagram

2178EE-MCCapp1

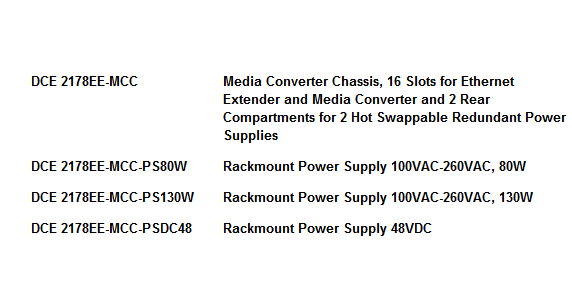

Ordering Information

2178EE-MCC-ordering-info-
