Data Connect
2178CEE Coax Ethernet Extender

2178CEE

The Data Connect 2178 Coax Ethernet Extender is designed for an Industrial Coax Ethernet Extender application. The Data Connect 2178CEE has a switching architecture with 4 RJ-45 10/100Mbps Ethernet ports and one asymmetric or symmetric High Speed Ethernet port that can be RJ-11 or BNC Connector. Installation can use either BNC or RJ-11 for network deployment and achieve the absolutely fastest data transmission speed possible over existing coaxial cable and telephone wire without the need of rewiring.

The Data Connect 2178 Coax Ethernet Extender provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curb side traffic control cabinets. The Data Connect 2178CEE can operate in a wide temperature range of -40 to 75°C, so it can be placed in almost any location. The Data Connect 2178CEE is packaged in a compact, IP-30 metal case that allows either DIN or panel mounting for efficient use of cabinet space. The Data Connect 2178CEE has an integrated power supply with wide range of voltages (12~48VDC) that allow for worldwide operability or for dual-redundancy with reversible polarity and an additional switching high voltage option of 100-240VAC and 85-400VDC.

The Data Connect 2178 Coax Ethernet Extender incorporates Ethernet over VDSL2 to transmit the Ethernet format data by using VDSL signaling over the existing coaxial cable or telephone wire. Therefore, the Data Connect 2178CEE is very good for deploying in networks that can use existing coaxial cable and telephone wire to transmit data to the Internet with minimum cost. The Data Connect 2178CEE can adjust to Master or Slave mode via a DIP switch. When the Data Connect 2178CEE master is connected via telephone cable with the other Data Connect 2178CEE slave device, the performance will be up to 99/63Mbps for asymmetric data rate within 200m and up to 28/2Mbps for asymmetric data rate at 1.4km. When the Data Connect 2178CEE master is connected via coax to Data Connect 2178CEE slave devices, performance is up to 99/65Mbps for asymmetric data rate within 200m and up to 31/4Mbps for asymmetric data rate 2.4km. This capability is ideal for use as an Ethernet extender for your existing Ethernet network.

Features

  • Cost-effective VDSL2 Master / Slave Ethernet extension
  • Selectable BNC and RJ-11 mode for the data transmission
  • -40 to 75°C Operating temperature
  • Redundant Power Design: 12~48V DC redundant power with polarity reverse protect function
  • IP-30 metal case protection
  • One box design, Master / Slave selectable via DIP Switch
  • Defines Asymmetric (Band Plan 998) and Symmetric band plans for transmission of Upstream and Downstream signals
  • Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard
  • DMT (Discrete Multi-Tone) line coding
  • Half Duplex Back Pressure and IEEE 802.3x Full Duplex Pause Frame Flow Control
  • Supports up to 1536 bytes packet size, 802.1Q VLAN tag transparent
  • Integrated address look-up  engine, supports 2K absolute MAC addresses
  • VDSL2 Standalone transceiver for simple bridge modem application
  • Selectable Target Band Plan and Target SNR Margin
  • Supports extensive LED indicators for network diagnostics
  • DIN Rail and Wall Mount Design

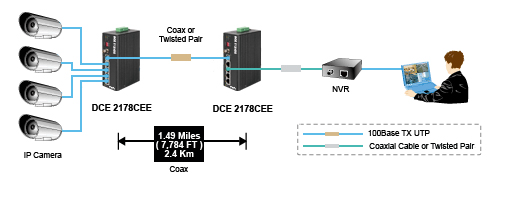

Application

2178CEEapp

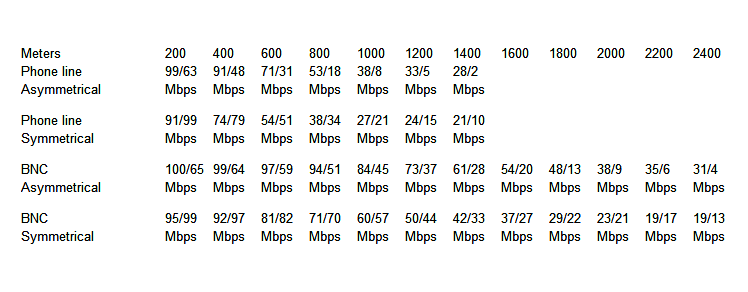

Performance

2178CEEapp2

Specifications

Ports
10/100 Base-TX: 4 RJ-45, Auto-Negotiation & Auto-MDI / MDI-X
Coaxial: 1 BNC, Female Connector
Phone-Line: 1 RJ-11, Female Connector

DIP Switch
4 Position DIP Switch

Functionality
Master / Slave Mode Select
Selectable BNC & RJ-11 Mode
Selectable Target Band Plan
Selectable Target SNR Mode

Encoding
DMT (Discrete Multi-Tone) Line Code
ITU-T G.997.1
ITU-T G.993.1
ITU-T G.993.2 (Profile 17a Support)

LED Indicator
System: P1 (Green), P2 (Green), Fault (Green)
VDSL2: Master (Green), Slave (Green), ACT (Green), Sync. (Green)
10/100Mbps Port: Link/ACT (Green)

Cabling
Ethernet: 10Base-T – 2-Pair, UTP Cat.3, 4 & 5 up to 100m (328ft)
Ethernet: 100Base-T –2-Pair, UTP Cat.5, 5e, & 6 up to 100m (328ft)
Coaxial Cable: 50ohm, RG58A/U, RG58C/U, RG58/U, or Equivalent; 75ohm, RG-6 (Distance Up to 2.4km)
Twisted Pair Telephone Wires (AWG24 or Greater) Distance Up to 1.4Km

Dimensions (H x W x D)
5-5/16 x 3-15/16 x 1-5/16

Weight
1.1lbs

Power Requirement
12-48VDC, 100-240VAC, 85-400VDC

Power Consumption
5.64Watts / 19BTU

Operating Temperature
-40 to 75°C

Operating Humidity
5 to 90%, Relative Humidity, Non-condensing

Storage Temperature
-40 to 85°C

Storage Humidity
5 to 90%, Relative Humidity, Non-condensing

Regulation Compliance
FCC Part 15 Class A, CE

Stability Testing
IEC6008-2-32 (Free Fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Standard Compliance
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Full Duplex Frame Flow Control ITU-T G.993.1, G.997.1, G.993.2 (Profile 17a Support)

Ordering Information

DCE/2178CEE-2PK                               Data Connect 2178 Coax Ethernet Extender 2-Pack
DCE/2178CEE                                      Data Connect 2178 Coax Ethernet Extender 2-Pack
