Data Connect
Copper-T T1 Extender
Copper-E E1 Extender
The Data Connect Copper-T and Copper-E are 4-wire repeaters for use on customer owned lines or extend Telephone Company demark. The Extenders are used to extend in-house T-1 and E-1 in campus and high rise environments.
Each pair of T-1/E-1 Extenders may be located up to 5000 feet apart. The Extenders circuitry is rate to -36 dB dynamic range at the T-1rate of 1.544 Mbps and -43 dB dynamics range at the E-1 rate of 2.048 Mbps. As implemented, the parts are slightly de-rated to provide long life at extended temperatures range. Therefore the distances specified in this document are only 5000 feet. Solid copper 22 AWG, two twisted pair is the preferred cable for connection between the Extenders. Connection to the Extender is made through Rj-45 modular connectors or 4-wire screw down barrier strips. Each Extender comes with two screws down barrier strips and one RJ-45 connector. If only RJ-45 connections are desired extra RJ-45 adaptors (part number 9502122) can be ordered.
The Data Connect Copper-T and Copper-E are powered by a small wall-mount transformer. The Extenders are designed for connection between T-1 equipment such as PBXs, T-1/E-1 line drivers, CSUs, router or any other T-1/E-1 equipment requiring long customer owned cable runs. T-Extenders and E-Extenders can be used to connect this equipment across a campus, between floors of a high-rise office building or between office buildings with underground cables runs. The T-Extender/ E-Extenders are transparent to type of data sent over the T-1/E-1 link. The Data can be D-4 format, ESF, PRI, G.703, G.704, etc.

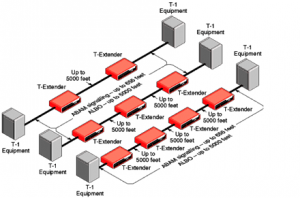

The T-Extender is most often used in pair to extend a telephone company demark. For example, if a CSU or DSU is limited to 655 feet and is connecting to a phone company smart jack demark which is limited to 655 feet, the T-Extender are used in pairs to extend that distance up to 5000 feet.
Features
- Extend Phone Company Demarks
- T-1 or E-1 4-wire repeater
- Extends T-1 or E1 lines
- Up to 5000 feet between units Rj-45 or screw down connectors
- Simple connections to 4-wire circuits
- Inexpensive solution to long cable runs
- 120/220 VAC,12, 24, 48, or 125 VDC available
- 1U high rack mountable, 1, 2, or 3×19” rack
- 20 slot rack chassis option
Specifications
General
T-1 repeater or E-1 repeater
Extends T-1 or E-1 bi-polar signals
Up to 5000 feet between T-extenders
Up to 4000 feet between E-extenders
Indicators
Power
Accessories
RJ45 wiring adaptor p/n 9502122
Customer to demark RJ45 cable p/n 9500095
Customer to customer RJ45 crossover cable p/n 9500099
Rack shelf, 1 U for 1 to 3 T-1/E-1
Extenders
20 slot, 4U high 19” rack mount chassis
Physical/Electrical
5.5” x 7.5” x 1.5”
100 ohm T-1, 120 ohm E-1 interface
2 lbs including wall transformer
120 VAC external wall transformer supply
Optional 220 VAC, 12, 24, 48, 125 VDC 30ma
Operating Temperature: -40° to +70°C
Operating Humidity: <98% non-condensing
Wire
Two twisted pair solid copper
other types will affect operational distance
Connectors
RJ45 modular 8-conductor connector
Pin 1 = Receive
Pin 2 = Receive
Pin 4 = Transmit
Pin 5 = Transmit
4-Wire barrier strip
Pin 1 = Receive
Pin 2 = Receive
Pin 3 = Transmit
Pin 4 = Transmit
Connect the transmit pair of one extender to the receive pair of the other extender. Pairs are not polarity sensitive. Units supplied with 2 screw downs, 1 RJ-45
