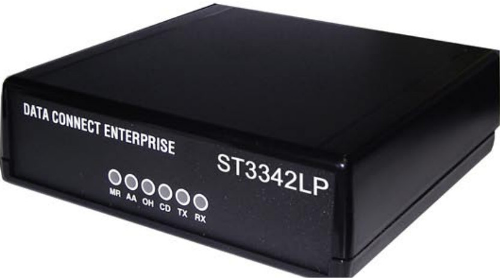

The Data Connect ST3342LP
For industrial networks, data centers and remote management application that require high-speed connections, the Data Connect ST3342LP family of wire line data modems incorporates the latest advances in modem design to deliver efficient and reliable performance that is packaged for industrial and commercial applications. ST3342LP series modems offer superior price/performance and robust features set that will meet or exceed your communications needs.
UNIVERSAL WIRELESS CONFIGURATION
Complex network configuration often incorporate a variety of data set interfaces, each requiring separate modem types. The result has been a requirement to stock seldom used parts, often in significant quantity. Now, the DCE ST3342LP series offers an all-in-one solution for a wide range of applications. Packaged in either a polymer or metal case, and backed by a five year warranty, the ST3342LP series is capable of operating in either 2 or 4 wire configurations on dial up, leased line, or short haul networks. Protocol support includes V.34, V.32, V.32bis as well as Bell 212A and 103j.
With its standard power saving standby mode and instantaneous (zero character loss) recovery, the ST3342LP series reduces stocking and spares cost while providing additional project flexibility. ST3342LP series modems have been developed to meet the strident environmental and performance demands of the commercial and industrial applications. Every component, switch and connector is selected for its ability to withstand industrial environmental demands. ST3342LP series models may be housed in optional metal enclosures and are built to meet the most stringent criteria. Temperature ratings, for stringent example, range from -20 C to +70˚C. Versatile power supply options will satisfy any industrial application. Available in commercial and industrial standalone configurations
- All In One Design- One Model to support 2-wire and 4-wire operation
- Leased Line, Dial-up, short haul V.34, V.32, V.32bis
- Standard Error Correction and compression AT command set Polymer or Metal Case
- 7-14VDC (power pack included) or 48VDC
V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21, Bell 212A, and Bell 103j
Physical- DB9 connector Electrical-RS-232F (V.24). Asynchronous: Auto baud or selectable format and rates to 115.2Kbps with V.34 or 57.6 Kbps with V.32bis.
Auto Dial Modes
Standard AT compatible dials command or DTR dial of stored number.
Standard auto answer or manual answer under DTE control.
V.42 and MNP 2-4 error correction
V.42bis and MNP5 data compression
Standard AT commands for both local and remote configuration
V.54 through AT commands
Dial-up: 2-wire pulse or DTMF XMT level: 12dBm RCV sensitivity: -43dBm
2-wire and 4-wire Leased and short –haul
XMT level: Adjustable RCV sensitivity: -43dBM
Standalone units automatically adjust to 7-14VDC unregulated, or regulated 5VDC ± 5% (ripple <100mv)
Optional 48VDC supply
115VAC->9VDC Wall Transformer included with all standalone configurations.
Operational Mode- 85mA@12VDC
Standby Mode -38mA@12VDC
Standby to Operational Transition Time-
Nearly instantaneous- will detect first character or ring.
Operating temperature range: -20˚C to 70˚C
Humidity: 90% non-condensing
FCC Part 68& Part 15, Class A Optional: International approvals available.
Dimensions: 5.3”L x 5.05”W x 1.53”H.
DCE/ST3342LP Standalone 115VAC
DCE/ST3342LP-DC Standalone 48VDC
